Standard Liner Systems

The Perfect Fit For Straight Pipe Projects

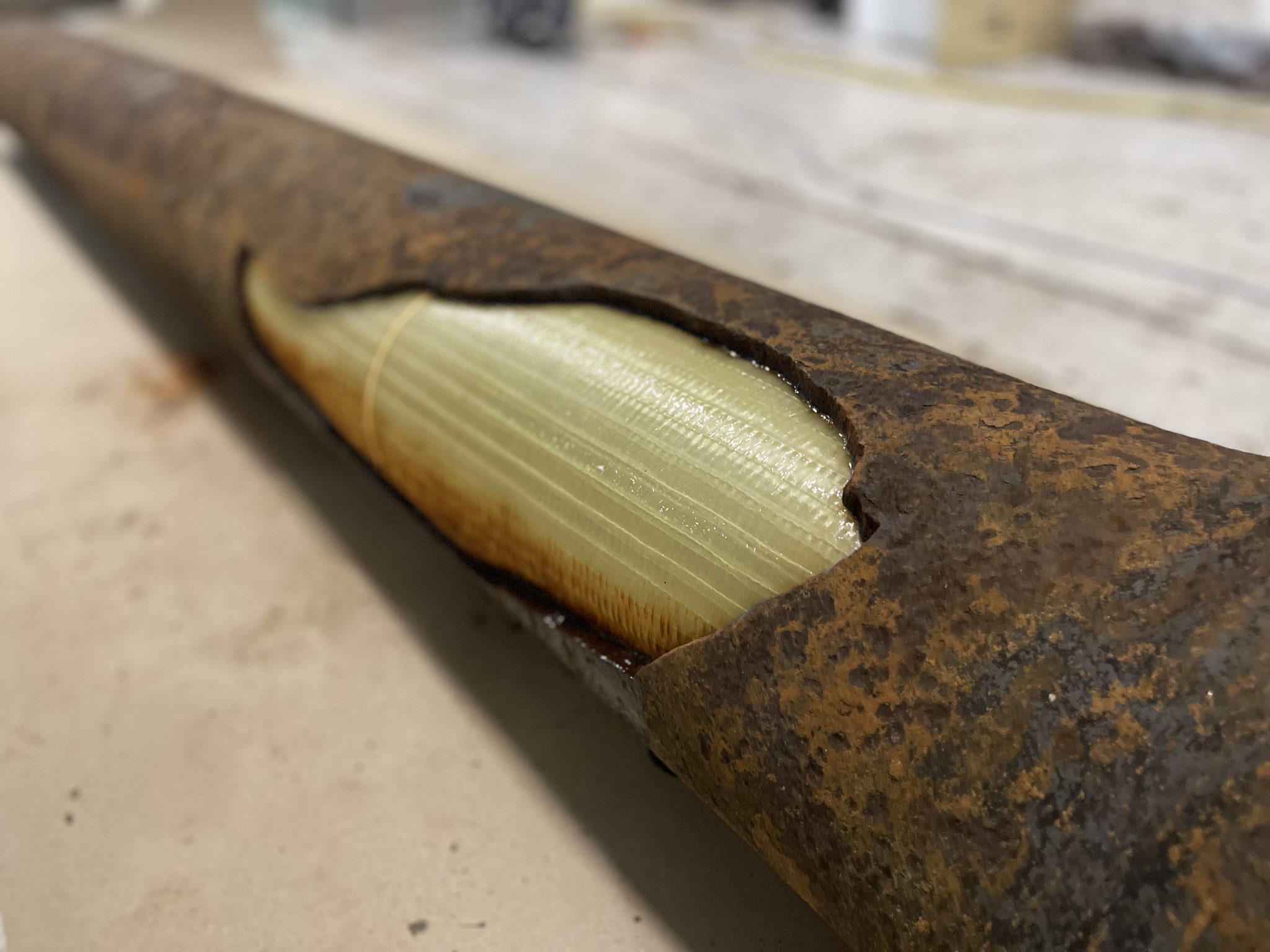

Standard liners are polyester fiber felt liners made for landing the liner at a definitive point and straight piping applications.

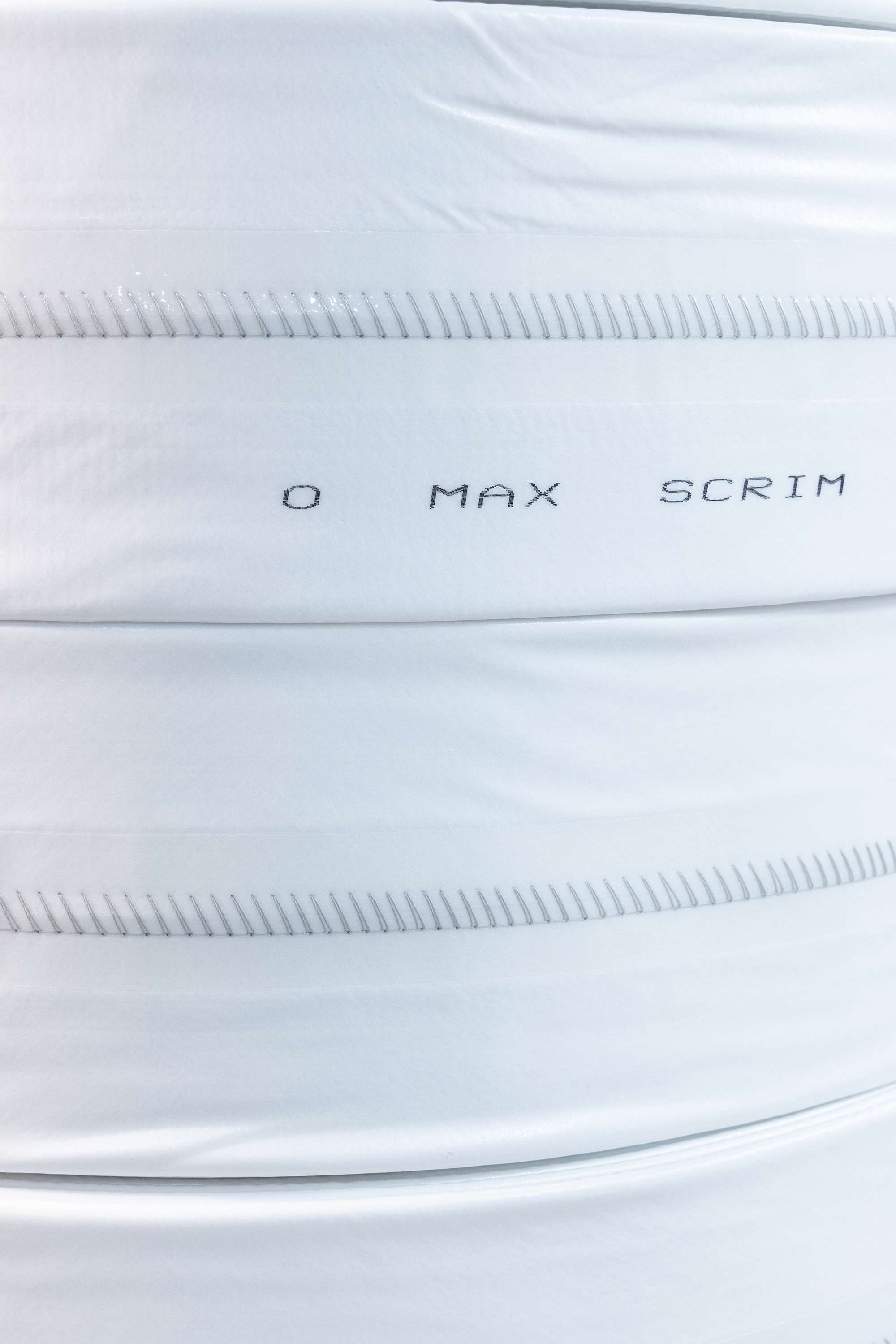

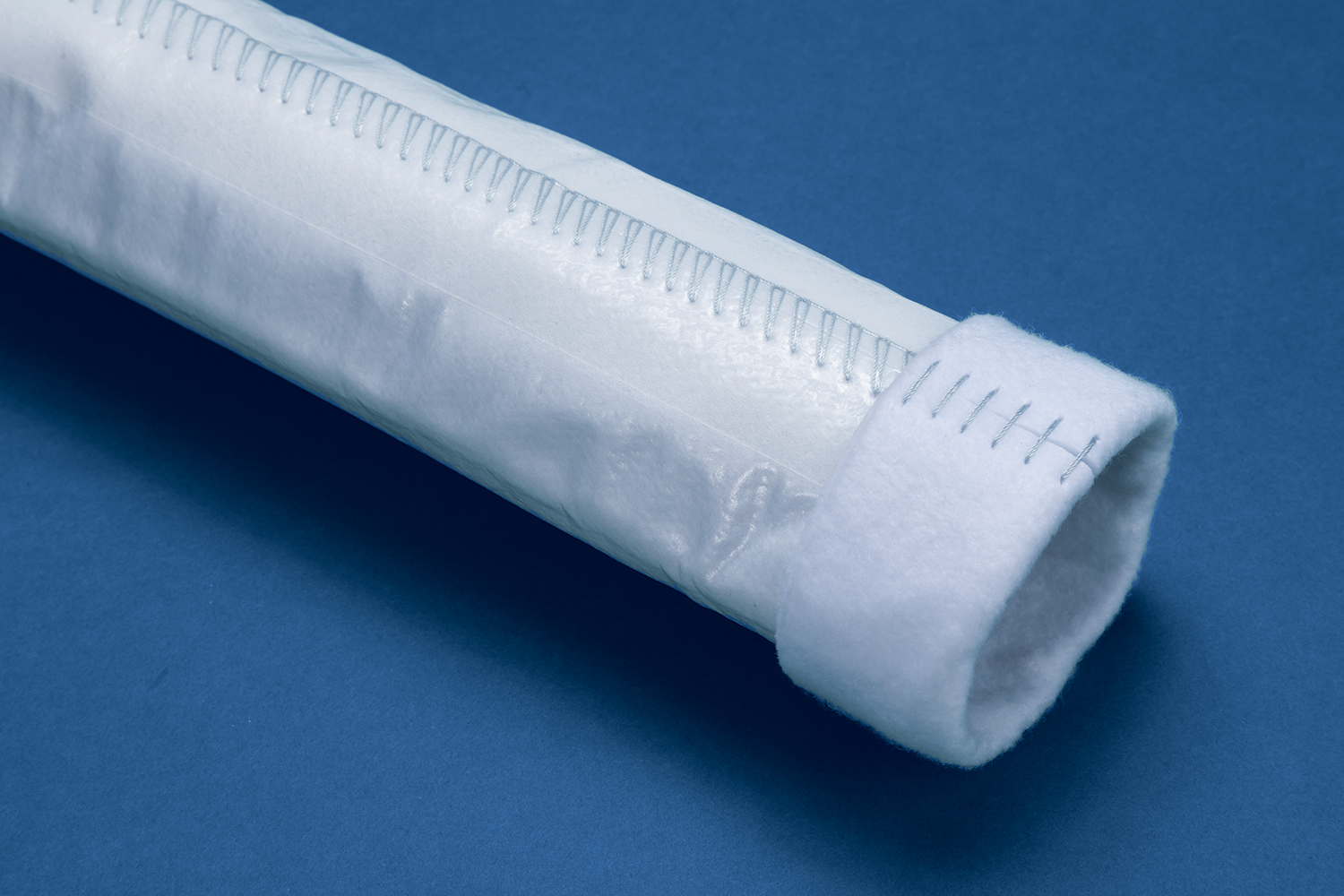

Max SCRIM Liner (PU)

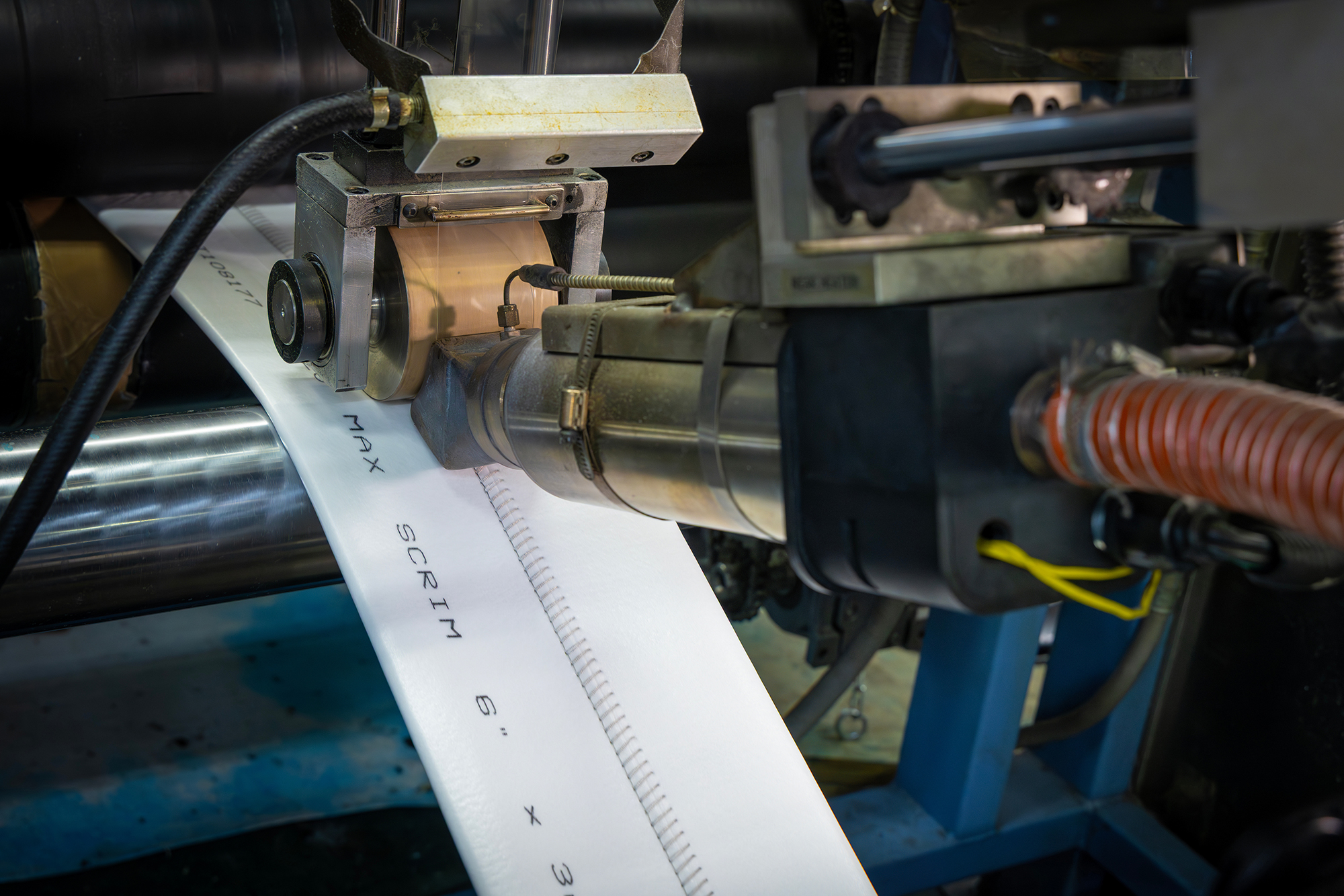

Max SCRIM Liner is a non-woven, needle-punched polyester fiber felt offered with either PU or PVC coating. There is a 100% continuous polyester reinforcement filament (SCRIM) integrated into the fabric to limit longitudinal stretch during installation. Tube forming and seam bonding are achieved through a specially designed thermal welding and/or an overlocking chain stitched sewn process — creating a superior, high-performance impermeable liner designed for accuracy.

Open-End (Blindshot) with Calibration Tube
Closed-End
Ideal for landing the liner at a definitive point and straight piping applications. This non-stretch liner may be used on sweeping bends up to 45° with slight wrinkling. Manufactured transitional liners and custom sizes are available.

ML Max SCRIM Liner TDSDownload (100.28 KB)

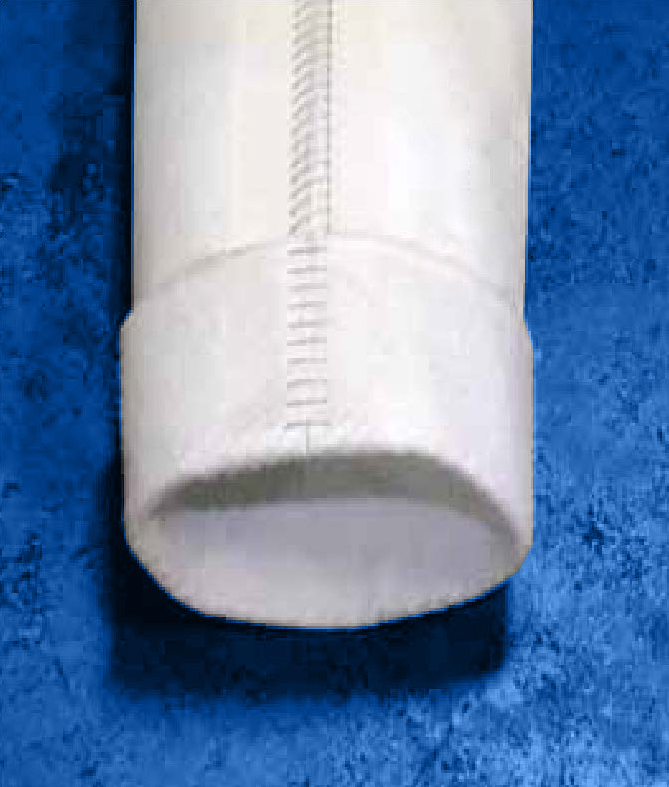

Max LinerTube™ (PU)

Non-woven, needle-punched polyester fiber felt offered with PU coating designed for sweeping bends and very minimal stretch.

Open-End (Blindshot) with Calibration Tube & Closed-End
Straight piping applications with minimal stretch.
Sweeping bends up to 45°
Manufactured transitional liners and custom sizes are available
PVC Compatible with MaxPox VE

ML Max LinerTube TDSDownload (98.08 KB)

Max LinerTube™ (VE)

Non-woven, needle-punched polyester fiber felt designed for sweeping bends and very minimal stretch.

Open-End (Blind shot) with Calibration Tube & Closed-End
Straight piping applications with minimal stretch.
Sweeping bends up to 45°
Manufactured transitional liners and custom sizes are available

ML Max LinerTube VE TDSDownload (239.15 KB)

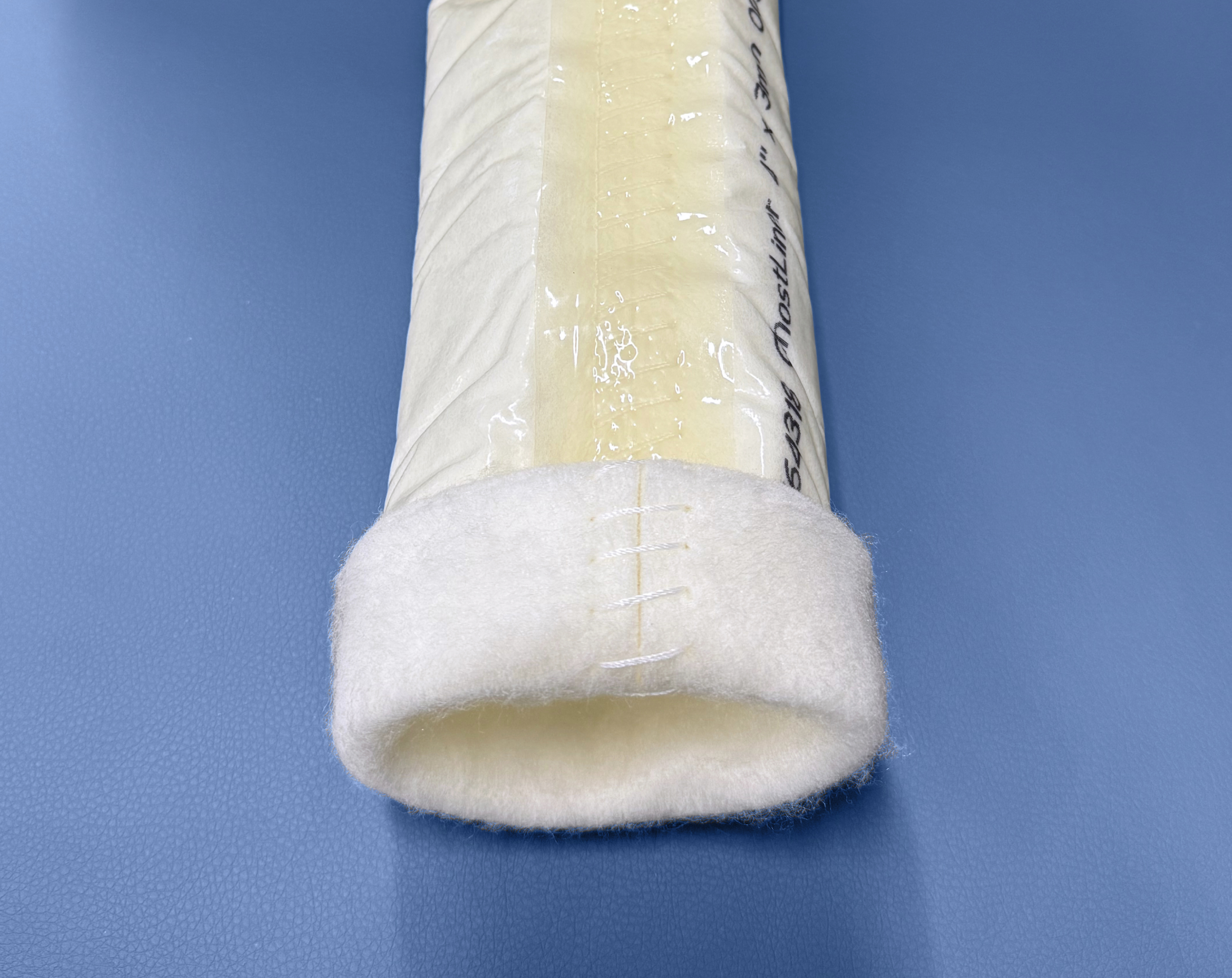

MaxClear™

MaxClear^™ is a uniquely manufactured synthetic fiber felt CIPP liner with a TPU coating specifically designed to maximize LED light-cure capabilities. Tube forming and seam bonding are achieved by an overlocking chain stitched seam with an extruded taped joint – creating a superior, high-performance, impermeable liner designed for sweeping bends up to 45° and very minimal stretch. Manufactured in accordance with ISO9001:2015.

Ideal For LED Light Cure
