Curing & Wetout Systems

Maximize the efficiency and precision of your liner installations with MaxLiner’s advanced wetout equipment. Our offerings include the Max E-Roller, each designed to meet the needs of different project scales and requirements.

MaxLiner offers field-proven curing equipment designed to meet a wide range of CIPP lining needs, delivering optimal results through ambient, heat, or UV/LED curing methods. For traditional curing of standard liners, our systems provide a cost-effective, reliable, and efficient solution in the field.

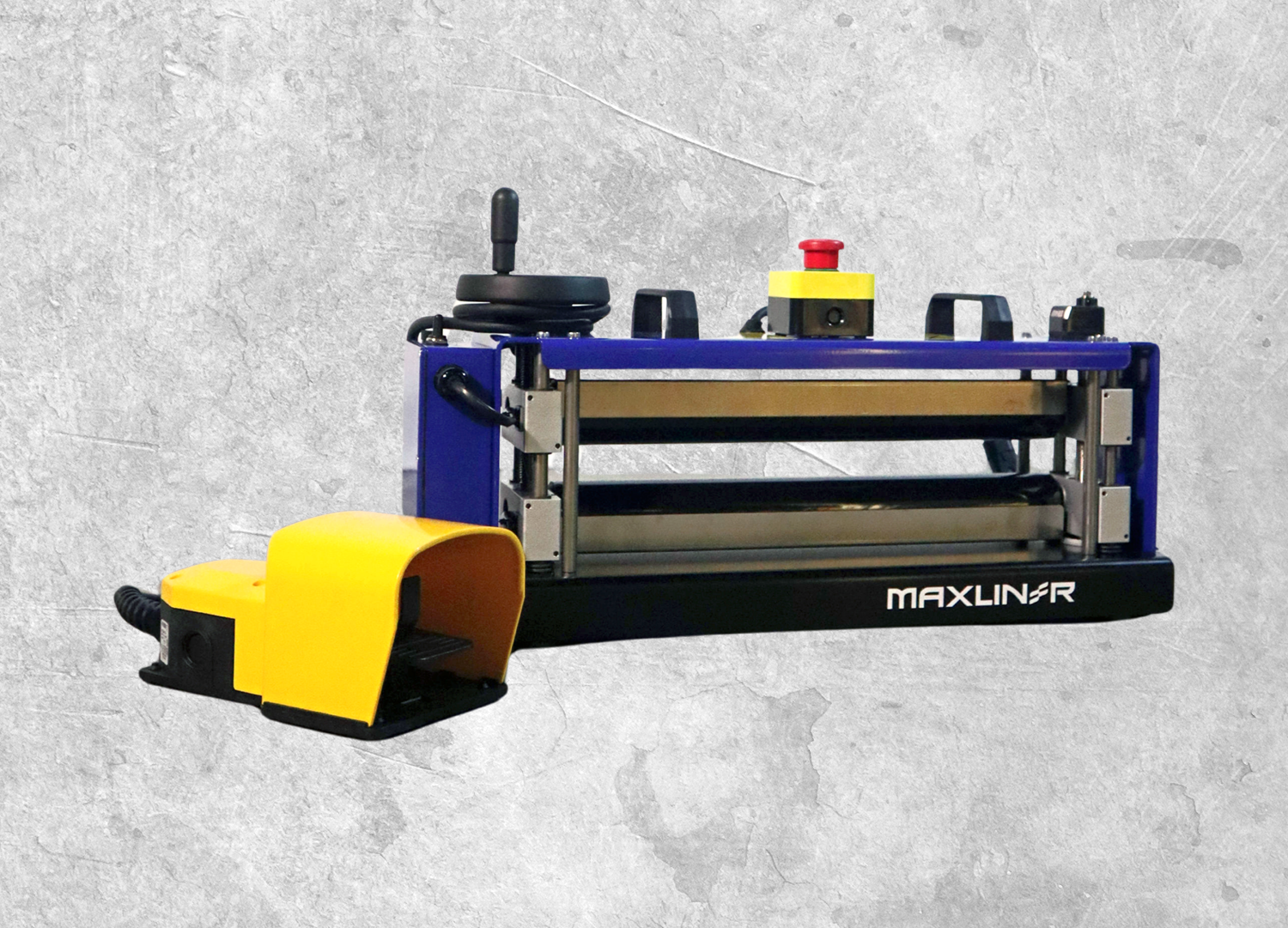

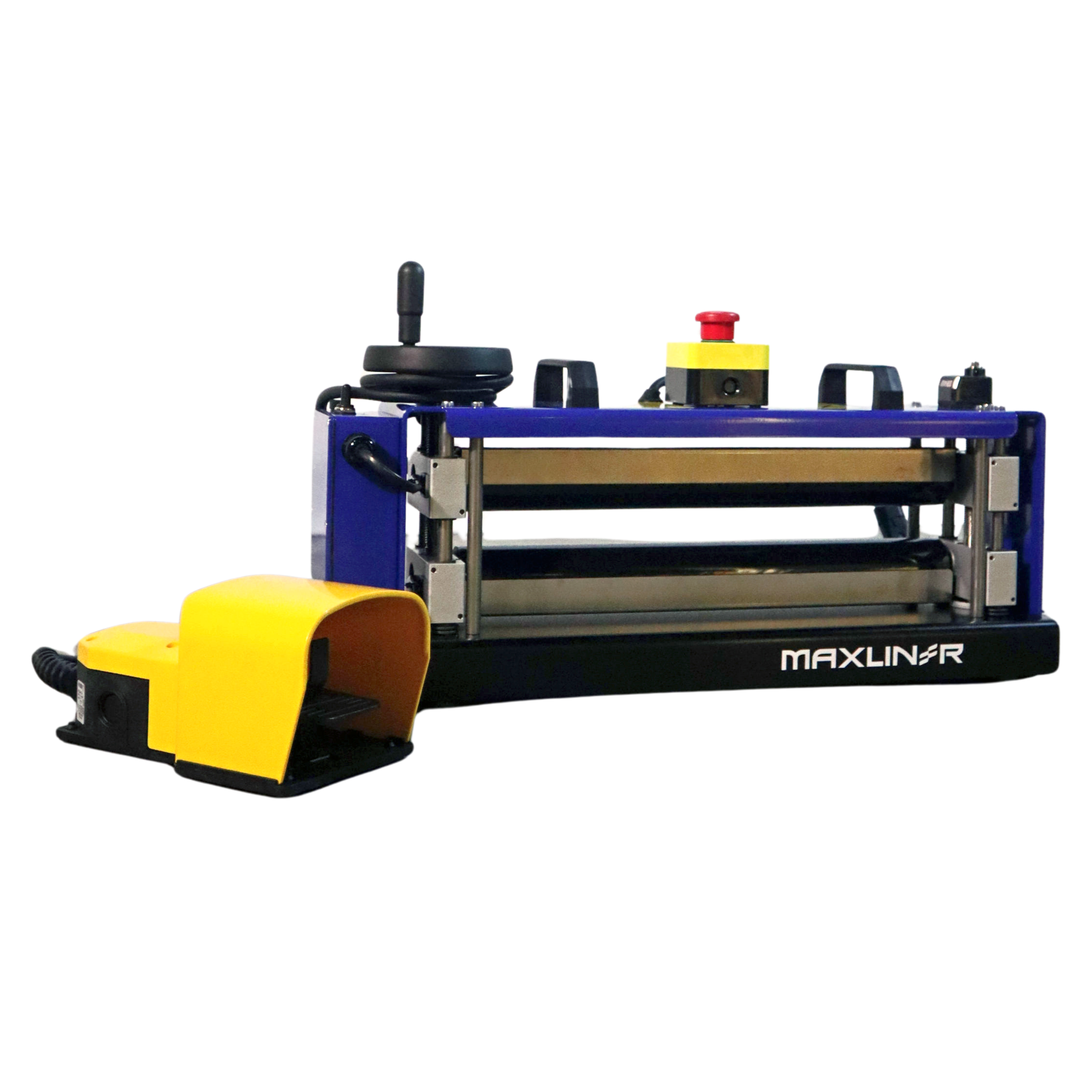

Max E-Roller

MaxLiner’s material-friendly impregnation Max E-Roller is ideally suited for even distribution and complete resin saturation into the liner for trenchless sewer rehabilitation. The Max E-Roller for pipes up to 12″ | DN300 is a convenient, user-friendly solution in a new design. This compact version is lightweight and features electronic calibration. The roller spacing, which determines the wall thickness is controlled using a handle located on the top of the unit. The pull-through speed is defined and controlled electronically via a rotary control. This unit is equipped with a quick detach mounting bracket.

Input 100 – 240VAC / 50 – 60Hz / 2.1A
Adjustable speed control
Direction switch
2 powered brushless rollers/motors with grip coating
Foot switch
Adjustable roller gap with counter reading
Quick release table fixing for easy movement on the work site
Safety limit pressure between rollers, rollers stops if pressure is too high
Safety covers in both rollers
Emergency stop
Carrying handles
Weight: 48 lbs | 22 kg
Measures: 31″ x 8″ x 14″ | 787 x 203 x 356 mm
Capacity: Max. 12” | 300 mm liner

ML Max E-Roller TDSDownload (245.11 KB)

Max HotKick 2.0

For 3”-8” | DN75-200 Pipes

A mobile hot water curing system featuring a built-in recirculating pump, ideal for use with 3”-8” | 75-200 mm diameter pipes. This propane-fueled unit includes essential accessories like a curing manifold, pressure and temperature gauges, and recirculation hoses, making it perfect for on-site applications.

Fuel: Propane
Power: 55kw
Dimensions: 24″ x 36″ x 49″ | 610 x 914 x 1245 mm
Range of Use: up to 8″ | 200 mm
Water Flow Rate: 5-7 gpm
Connected Voltage: 230 V / 50Hz or 110 V / 60 Hz
Type of Protection: IP
Max. Temp: 185°F | 85°C with thermostatic control
Temp Increase: ~105.8°F | 41°C at 5 gpm
Weight: 177 lbs | 803 kg
Power Consumption: max 300 Watts

ML Max Hotkick TDSDownload (449.93 KB)

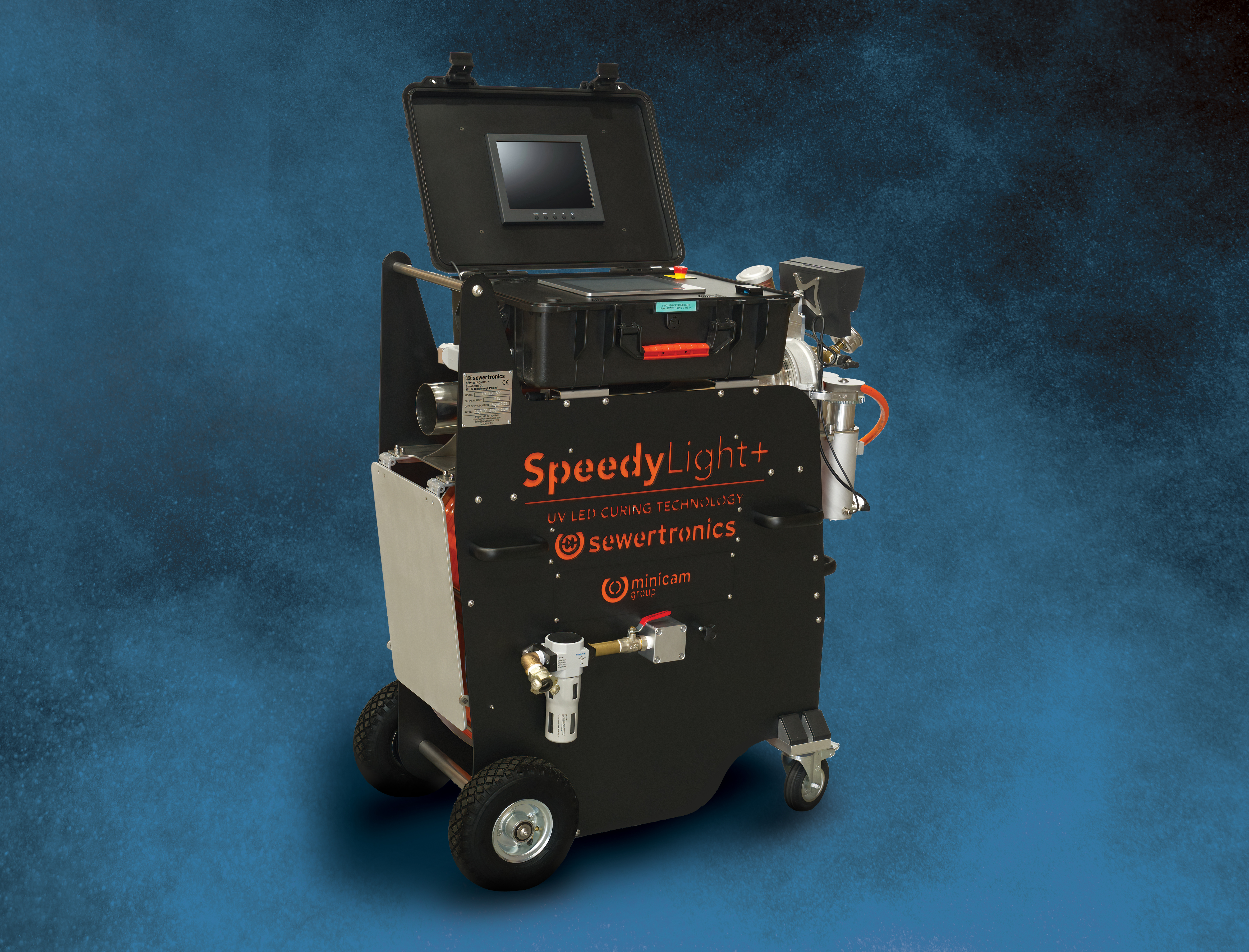

SpeedyLight+

The SpeedyLight+ LED system is designed to be used in both horizontal and vertical pipes. Most laterals are horizontal, although building rehabilitation frequently involve vertical piping. SpeedyLight+ LED protects our Environment by using less power and less energy to cure. SpeedyLight+ LED successfully negotiates 90° soft bend or 2×45°. Its semi-rigid hose ensures a convenient push of the head along the pipe. All-in-one design allows the curing system to deploy virtually anywhere. Control unit, power supply and cable reel are integrated in a single, portable package. Curing head with embedded camera delivering 150° field of view for a crisp image of the pipe.

Physical

Dimensions: (LxWxH) 57.54 x 21.38 x 35.57 in | 1461.5 x 543 x 903.5 mm
Total Weight: 282 lbs | 128 kg
Material: Chassis based on aluminium, stainless steel and ABS

Computer

HMI: 9.7” | 24.7 cm Touch Panel
PLC: Siemens Simatic

Display

Main Monitor: 10” | 25.4 cm installed within the CU
Auxiliary Monitor: 7” | 17.75 cm installed within the PU

Connectivity

WI-FI Connectivity: 2.4 GHz
Mode: AP
Internal Access: Socek RJ45, WAN, Mobile tethering via USB

Safety

Auto-stop Function: Yes, by sensor of contact
Emergency Stop :Yes, Emergency Stop Button installed within the CU
Power: RCD Switch

Power Requirements

Voltage: 110-230V 50/60 Hz
Mains Requirement: E-type or std. Schuko wall socket
Connection: 5m power cord
Power: 8.5A 220V / 17A 110V

Cable Reel

Umbilical Cable: 164 ft., 230 ft., 328 ft. | 50m, 70m, 100m

ML SpeedyLight+ TDSDownload (352.81 KB)ML SpeedyLight+ FlyerDownload (2.42 MB)

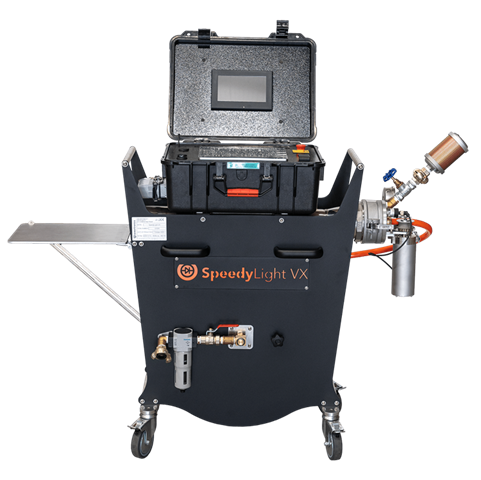

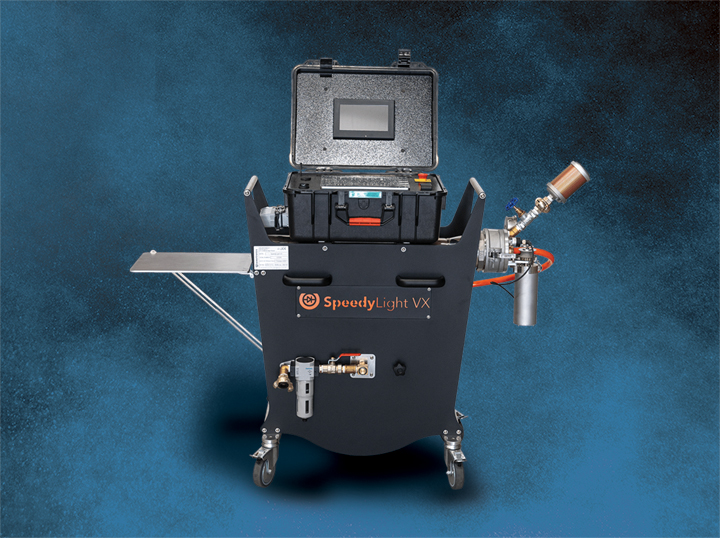

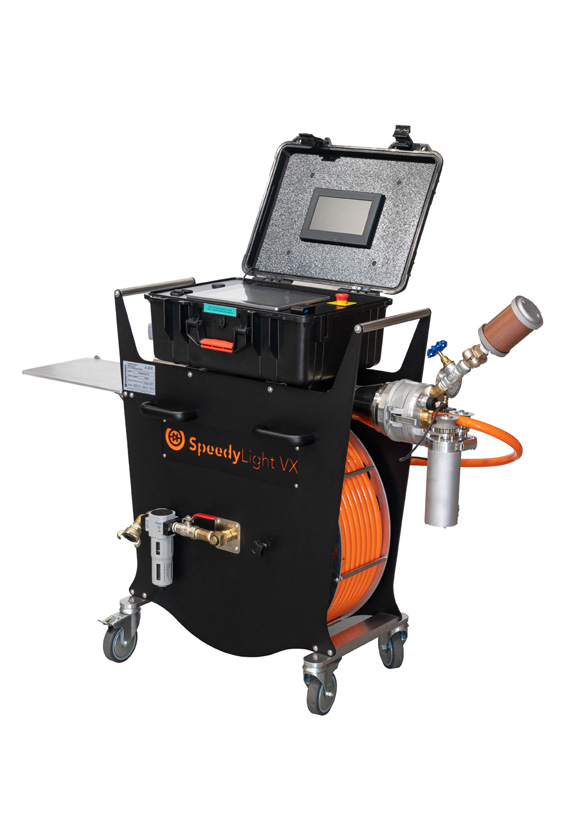

SpeedLight VX

Cure Up To 3″-6″ | DN70 – DN150 Pipe

The SpeedyLight VX LED curing system is designed for mainline and vertical trenchless rehabilitation applications. Its advanced LED technology, combined with Sewertronics LED epoxy resin, enables CIPP contractors to reduce curing times by eliminating downtime associated with ambient‑cure resin systems.

The system supports pipe diameters from 3 – 6” | DN70–DN150. When used with the optional XXS kit, SpeedyLight VX can also be deployed in 2” | DN50 pipes. SpeedyLight VX LED is supplied with a 125 ft | 38m hose on a compact, highly portable frame.

Physical

Dimensions: (LxWxH) 25 x 14 x 31 in | 635 x 355 x 787 mm
Total Weight: 132 lbs | 60 kg
Material: Chassis based on aluminum, stainless steel and ABS

Computer

PLC: Siemens Simatic

Display

Main Monitor: 7” | 17.78 cm installed within the CU
Auxiliary Monitor: 7” | 17.75 cm installed within the PU

Connectivity

WI-FI Connectivity: 2.4 GHz
Mode: AP
Internal Access: Socek RJ45, WAN, Mobile tethering via USB

ML SpeedyLight VX TDSDownload (368.04 KB)ML SpeedyLight+ FlyerDownload (2.42 MB)

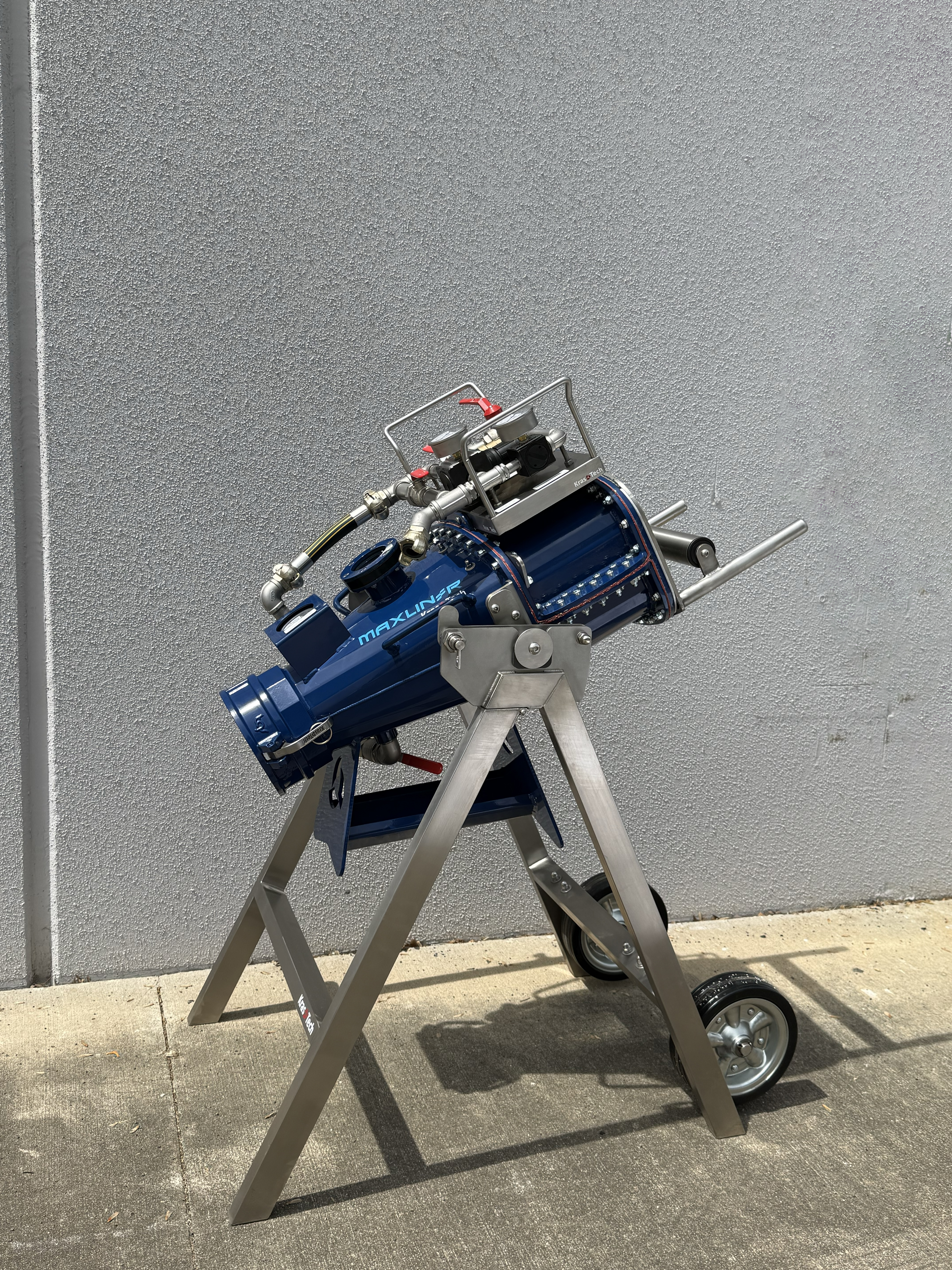

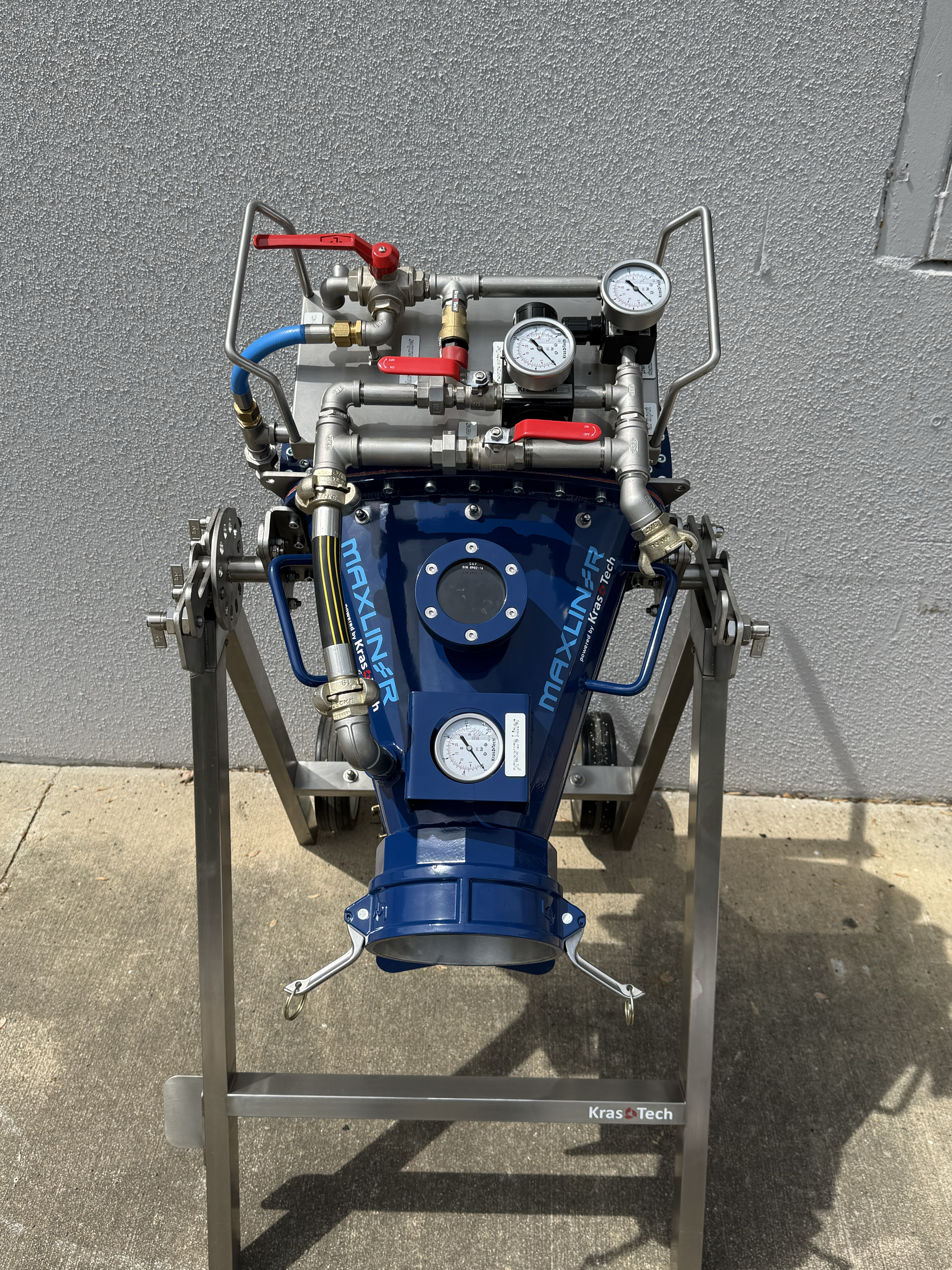

Sluice

For Pipes 2″ – 8″ | DN50 – DN200

The Sluice is a developed system based on our patented two-chamber system for “endless inversion”. This protects the liner from unwanted stretching, bruises, wrinkles, and folds. This sluice works with all known rehabilitation methods such as cold, warm, steam, and UV curing.

For Pipes 2″ – 8″ | DN50 – DN200
Material: stainless steel or aluminum
Dimensions: approx. 45 x 31 x 39 in | 1150 x 790 x 1000mm
Outlet: 8″ Camlock
Weight: Stainless steel version approx. 130 lbs | 59kg (without nozzles), aluminium version approx. 99 lbs | 45kg (without nozzles)
Safety blow-off at 21.75 psi | 1.5 bar
Compatible for air, steam, hot water, UV/LED
Max Temp: 194°F | 90°C
Special Features:
