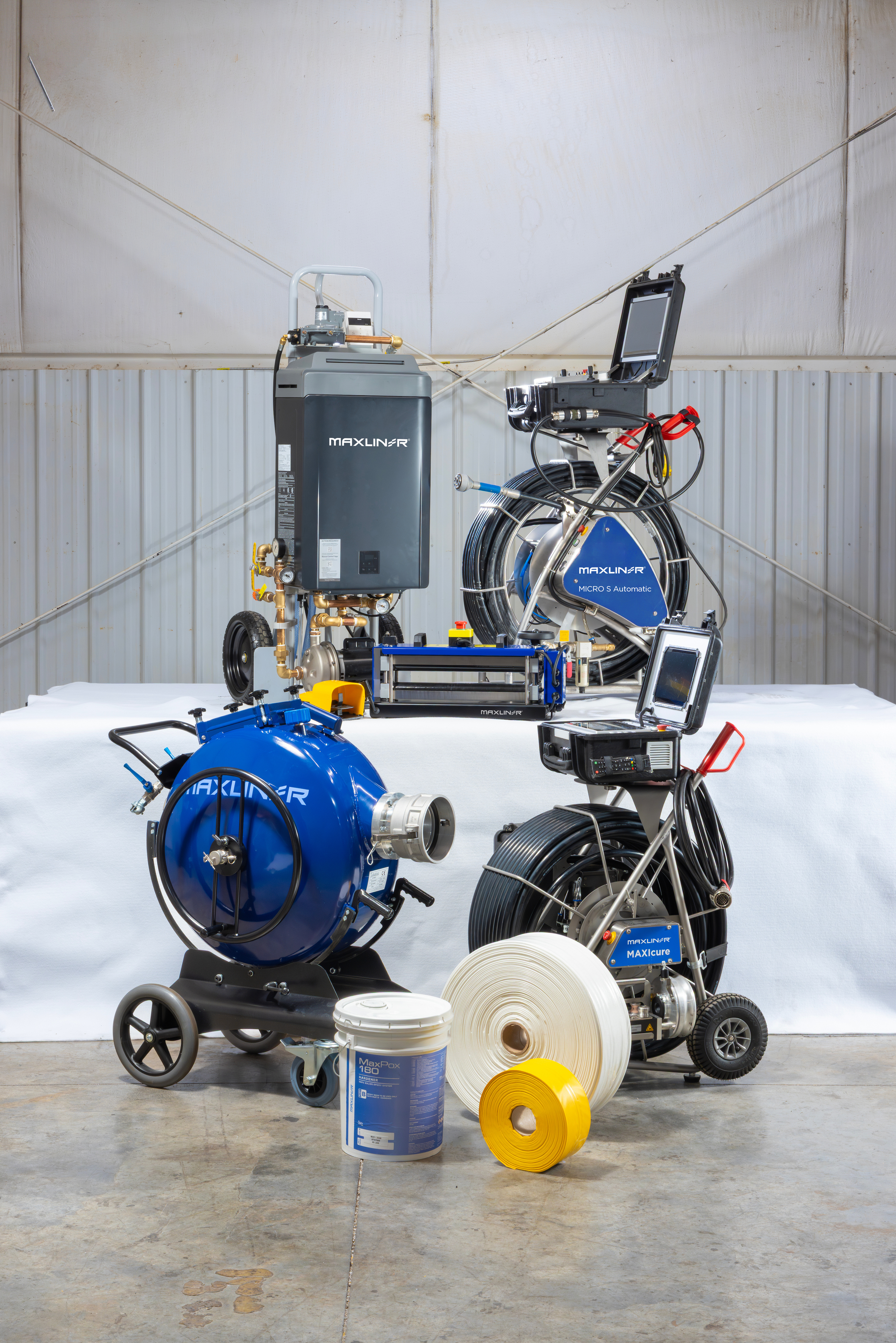

MaxLiner®, the most comprehensive solution for rehabilitating lateral and vertical pipelines using the Cured-in-Place (CIPP) process, provides installers with the hardest-working equipment in the industry. Specially designed for portability and accessibility, the MaxLinerGun® is lightweight and compact so everything you need can be quickly and easily transported, taking you from one job to the next with efficiency and ease.

Small enough to fit into your existing service vehicles, the MaxLiner System needs only two workers to get the job done right. The highly portable MaxLinerGun’s design makes it a perfect fit for the rehabilitation of traditional in-ground laterals, as well as for hard-to-reach vertical applications on rooftops, in basements, swimming pools, skyscrapers and more.

MaxLinerGunTM

The aluminum MaxLinerGun is a compact inversion unit for lining 2″-12″ diameter pipes.  Ideal for residential & industrial drains in horizontal or vertical applications.  Methods include open-end for blindshots to the main and closed-end for pit to pit.  The LinerGun rests on an adjustable stand and comes with 4″, 6″ and 8″ Adapter Rings.

Equipment

MaxCalibrationRollerTM

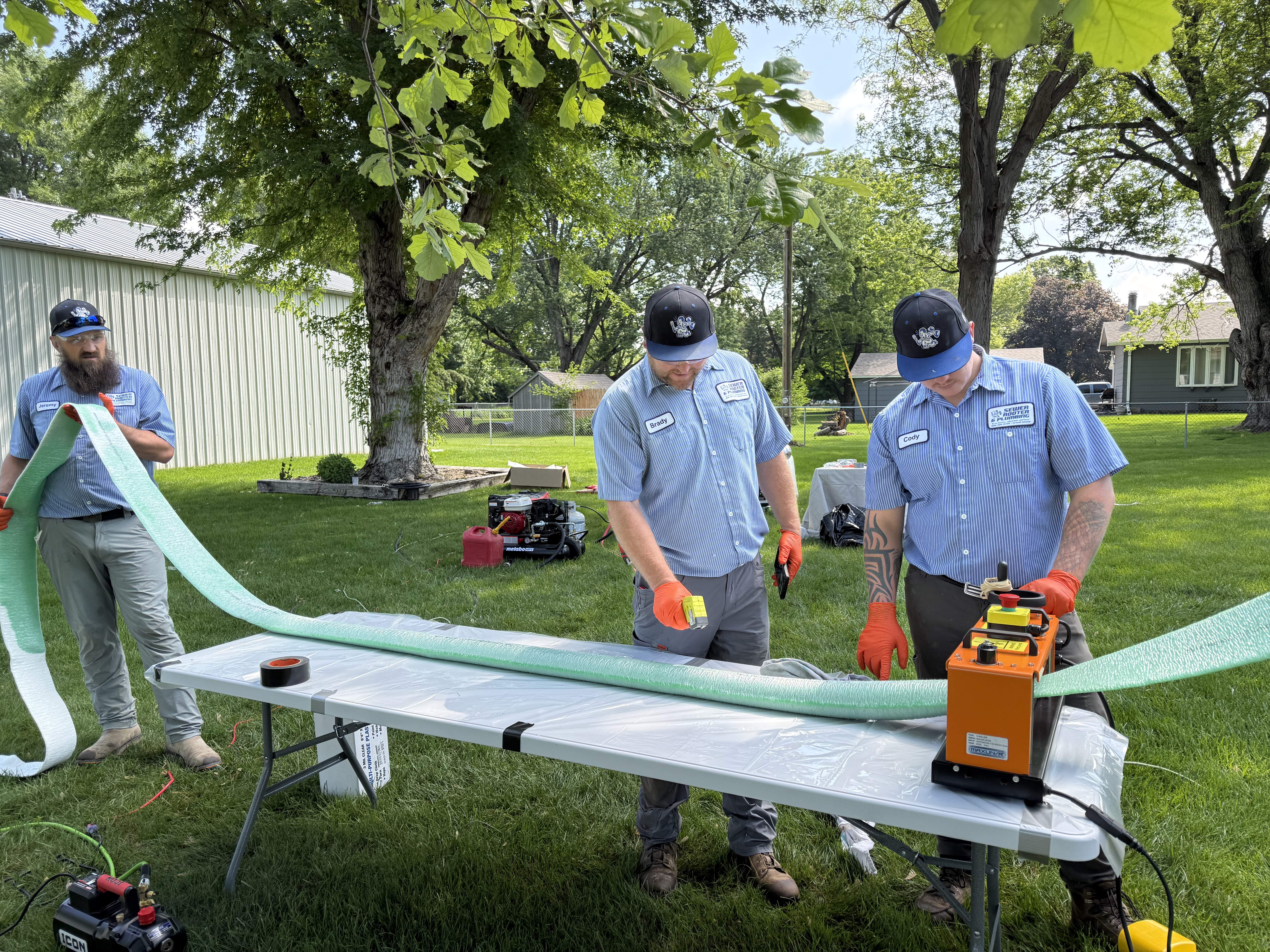

The MaxCalibrationRoller is a portable manual unit used to evenly distribute the mixed resin through the liner. The roller comes with the necessary shims (5mm-11mm) to set the appropriate gap setting per liner thickness for proper wet-out.

Equipment

MaxVacPumpTM

The MaxVacPump is an oilless electric pump that is equipped with an adjustable vacuum level regulator and suction hose to properly vacuum-impregnate the liner.

Equipment

MaxScaleTM

The digital MaxScale allows for accurately weighing the correct amount of resin and hardener following the calculation and procedure guidelines.

Equipment

MaxHotKickTM

The MaxHotKick is a diesel powered hot water heating unit, with a fully encased circulation system which is built on a mobile cart. This simple to use unit will properly heat cure rehabilitation work on pipelines up to 8 inches in diameter and includes the curing manifold for 3″-8″ with 50′ of both red (hot) and black (cold) 3/4″ recirculation hoses.

Equipment

MaxInfernoTM

The MaxInferno Hot Air Curing System is a very compact, electric powered, dry air portable heating unit. The self-contained unit is digitally temperature controlled which allows you to set the heat and regulate air pressure for use in 3″-6″ diameter pipes. Ideal for vertical applications, drop sewers and where hot water curing is not applicable. The complete system includes curing manifolds, 50′ of 30amp extension cord and power plug adapters in a rugged case for secure transportation.

MaxInferno

MaxSteamKickTM

MaxSteamKick is a simple to use steam unit complete with two 50′ steam hoses, steam diffuser, air to steam mixing station, 3″-8″ curing manifold, two 25′ red 3/4″ hoses w/ Cam Lock fittings, band clamps and pull strap.

Equipment

MaxCutterTM

The pneumatically-operated Max MicroCutter clears bends up to 90° with cutting precision made possible by a part-turn gearbox.
