Robotic Cutting

Small Diameter Cutting Solutions

For cutting out obstructions or reinstating laterals, MaxLiner offers a proven and powerful line-up of cutters for 3” – 10” pipe diameters.

These house-to-main connection cutters remove the toughest deposits and are a reliable tool when opening and reopening lateral connections after liner rehabilitation – quickly and effectively. Designed for optimum flexibility, MaxLiner’s cutters can reach any location. You can choose from several models and levels, based on your cutting demands.

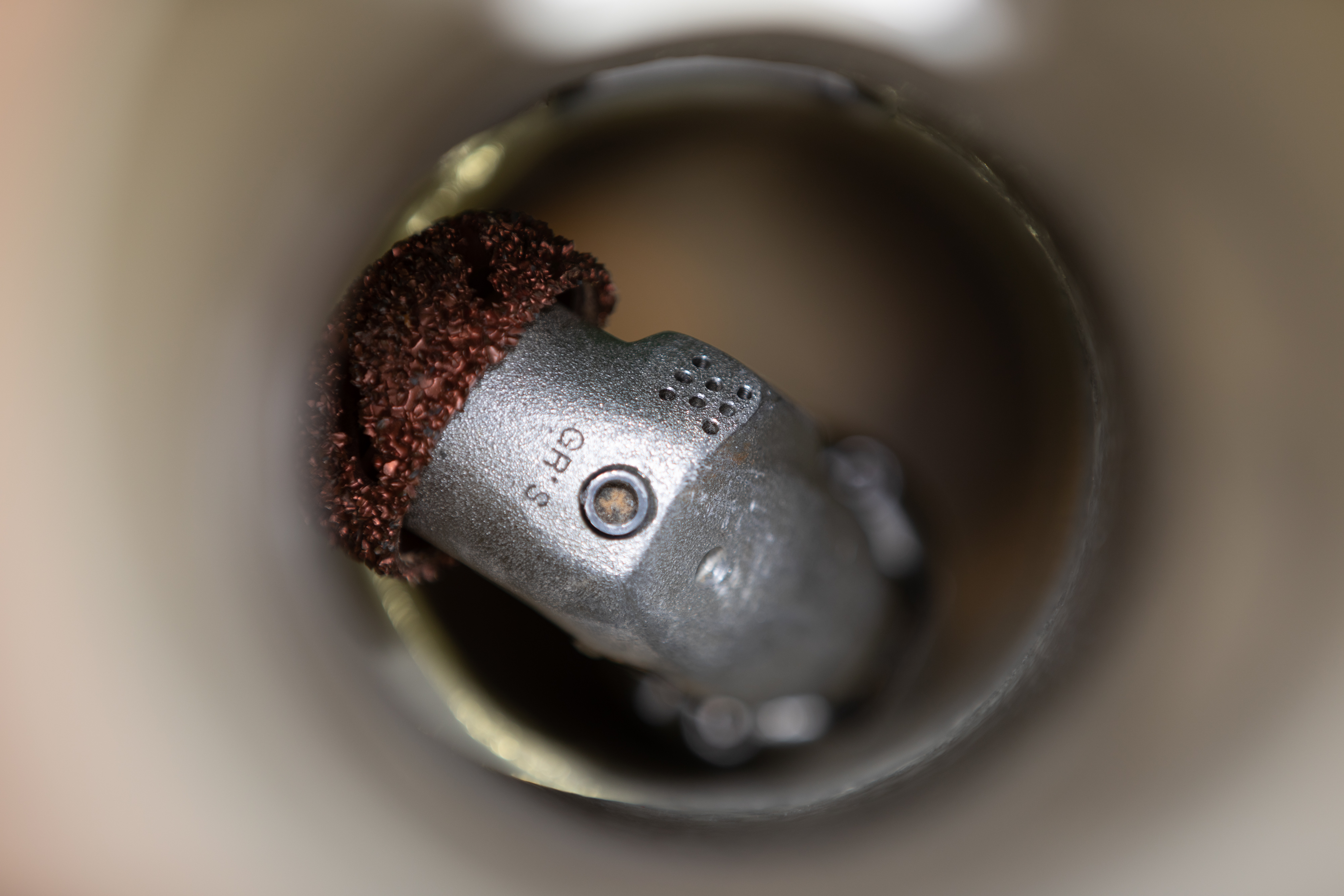

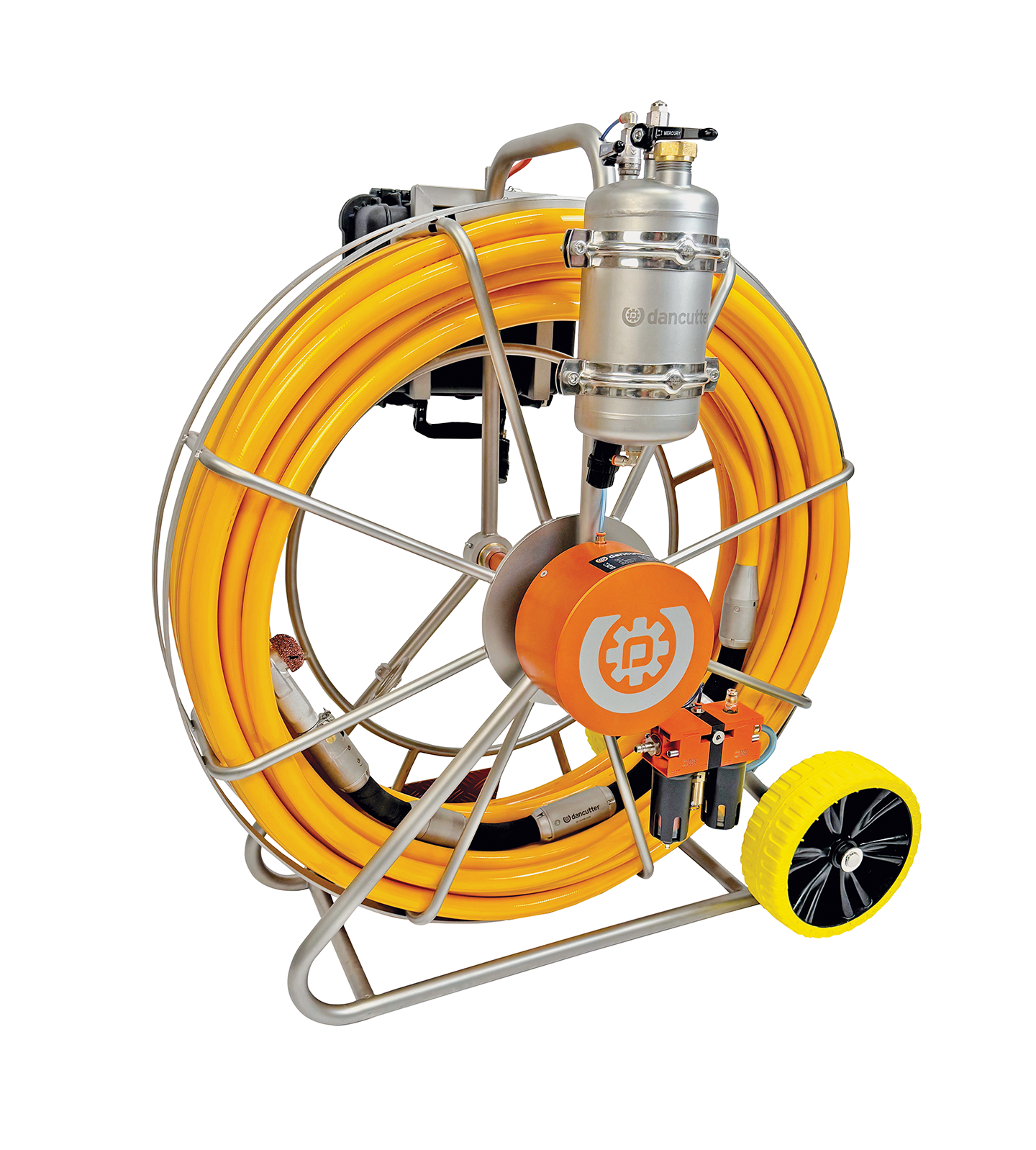

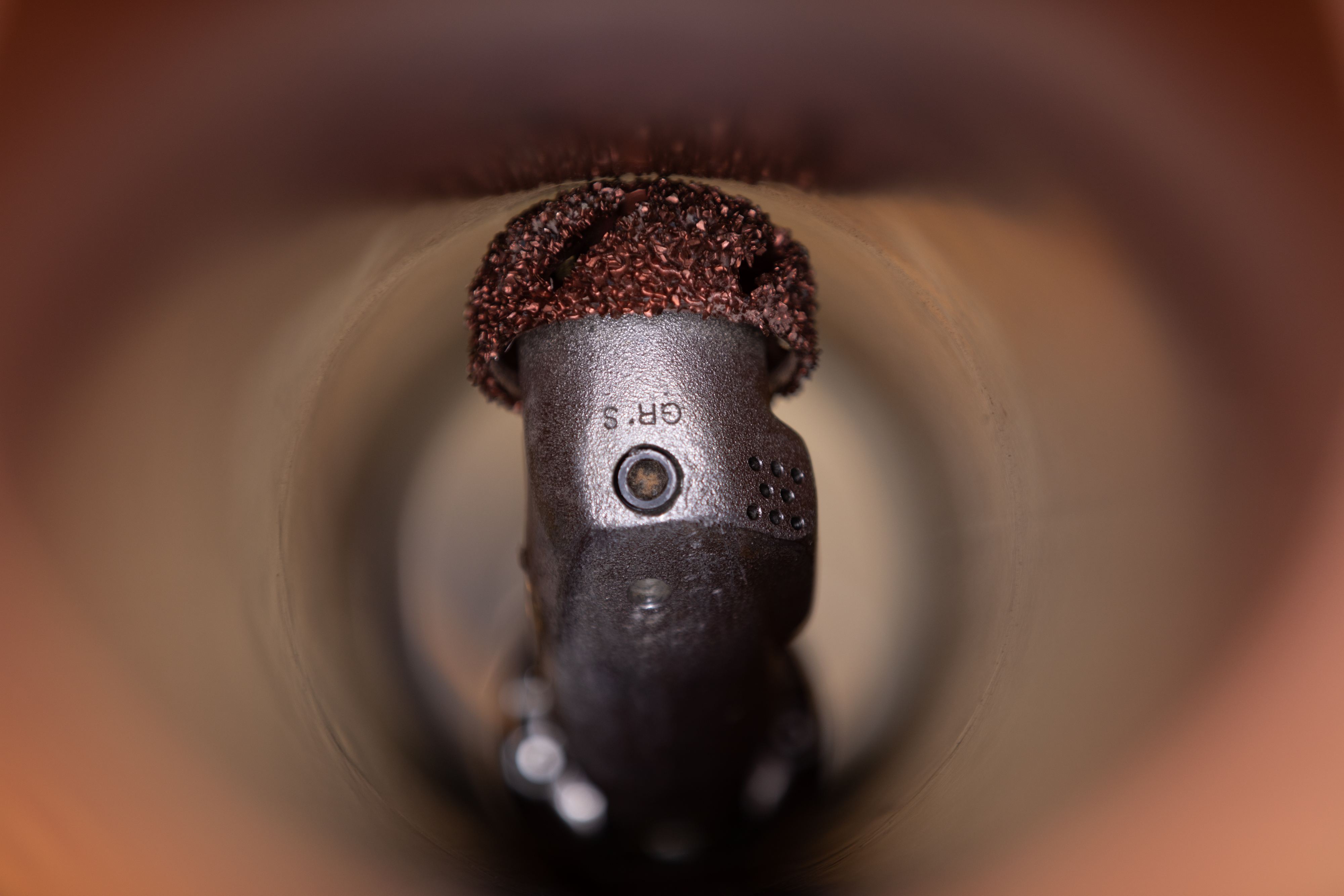

DC Super Flex

DanCutter’s Extremely Flexible Cutter – Size Range 3”-6” | 76-152mm

Powerful & Flexible
Extremely flexible in 45° and 90° bends. Effectively cuts, grinds, and mills in diverse materials.

Advanced Control Unit
Equipped with two joysticks, the control unit provides precise control over the motor rotation and cutter arm movements, allowing you to raise, lower, expand, and contract the cutter with ease.

360° Continuous Rotation
Enjoy unrestricted operation with a continuous 360° continuous rotation feature.

High Maneuverability
Automatic feeder and built-in slip ring for seamless back-and-forth movement.

Supply Hose
164 ft. | 50m hose for tailored operational flexibility.

Enhanced Functionality
The cutter is equipped with a spray nozzle for camera cleaning with air or fluid.

Pipe Diameter: 3”-6” | 75-150mm
Supply Hose Options: 82 ft. or 164 ft. | 25m or 50m
Bends: 45°-90°
Expansion/Extraction: 2.4” | 60mm
Rotation: 360° continuously
Grinds, Mills and Cuts: PVC, liner, concrete, iron, cast iron, stainless steel
Air Supply: 550 I/min, 22 cfm
Grinder: 15,000 rpm
Air Pressure: Max 145 psi | 10 bar
Power Supply: 110/240 VAC – LN
Weight:
- 82 ft. | 25m — 128 lbs. | 58 kg
- 164 ft. | 50m — 156.5 lbs. | 71 kg

Stainless Steel Frame (L x W x H):

39.37” x 19.69” x 40.55”
1,000mm x 500mm x 1030mm

DC Super Flex TDSDownload (623.68 KB)

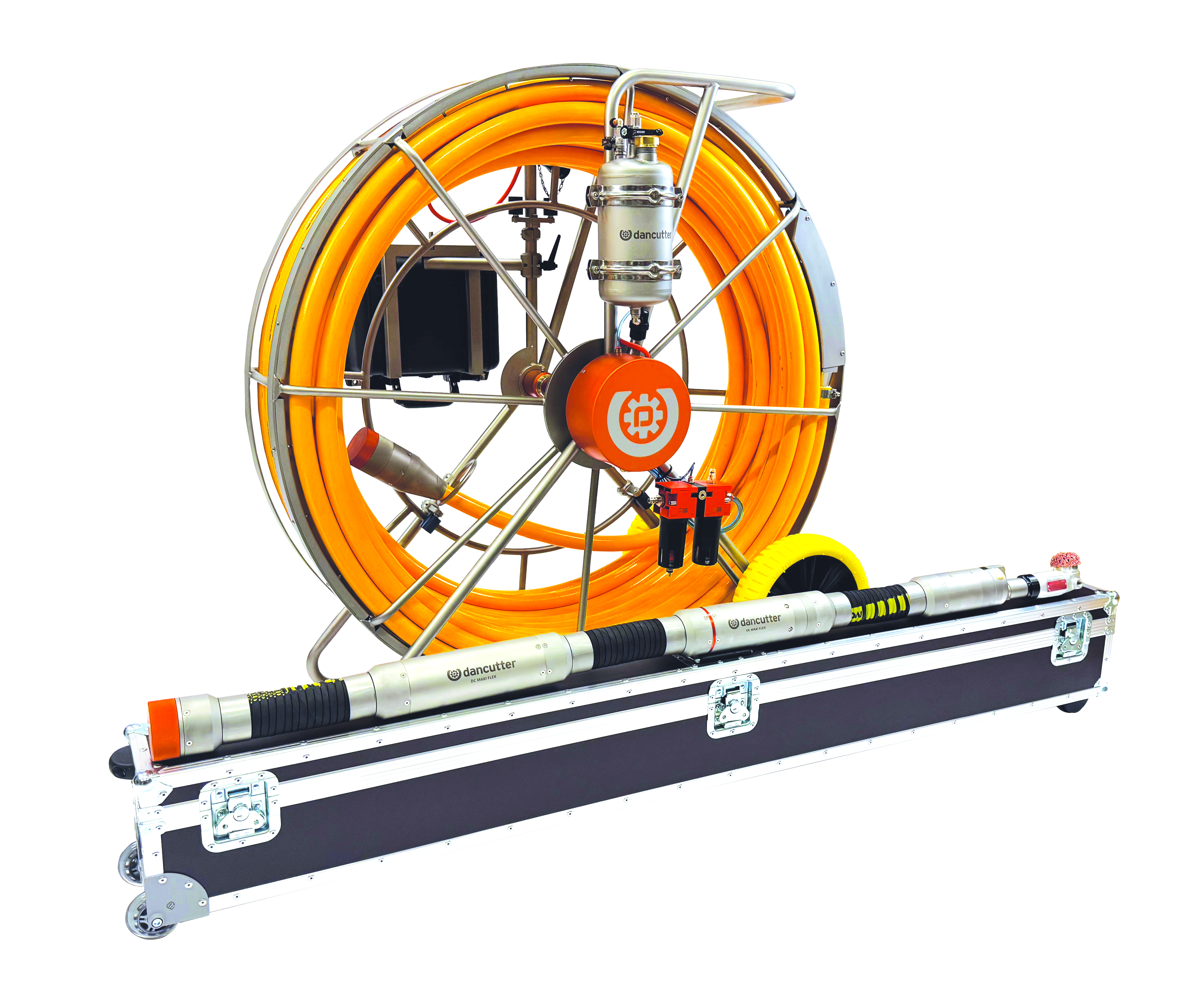

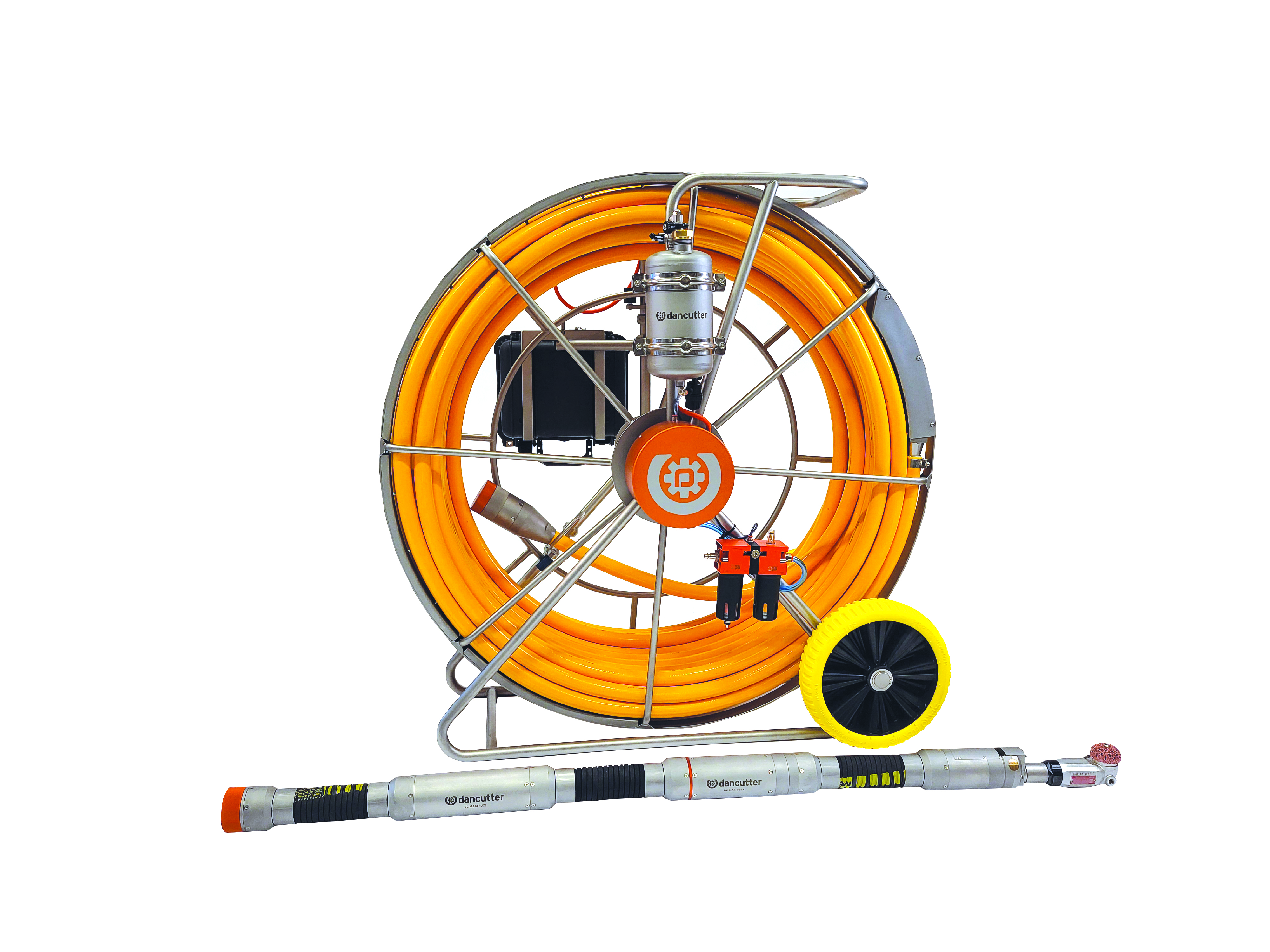

DC Maxi Flex

Bridge the Gap Between Laterals and Mainline with Maxi Flex

DC Maxi Flex is Dancutter’s most powerful cutter. It has an extremely powerful grinder which makes the cutter both fast and efficient. The DC Maxi Flex is flexible and can go through several 45° bends in a 6” | 150 mm pipe and works effortlessly whether the pipe is straight or has bends.

If you are mostly working in larger pipes, DC Maxi Flex is your right choice for reopening laterals or removing hard deposits like concrete.

When you are cutting, milling, and grinding in pipes from 4”-16” | 150-400mm, DC Maxi Flex is a powerful solution whether the pipe is made of PVC, concrete, cast iron, or steel.

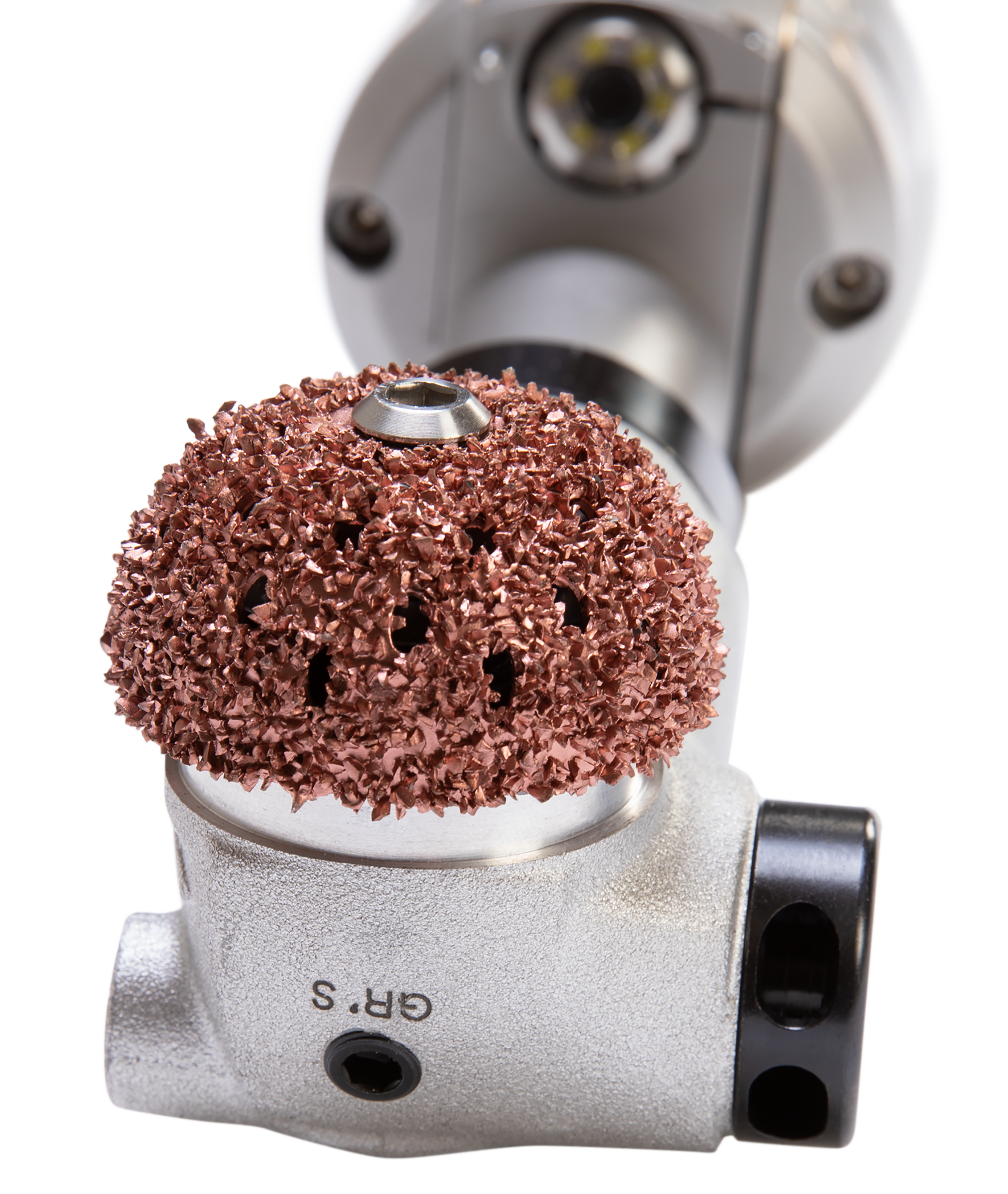

We also offer an extensive range of cutting heads for various purposes.

Extremely powerful motor
360° degree continuous rotation
High-quality stainless-steel alloy
12” | 305mm color display
Flexible through several 45° bends
Cuts, grinds, and mills in all materials
User friendly
Precise control

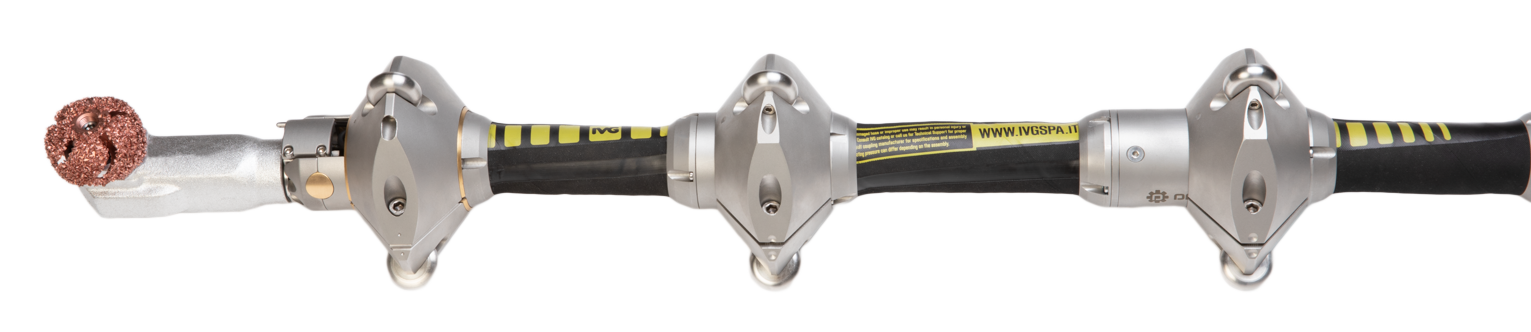

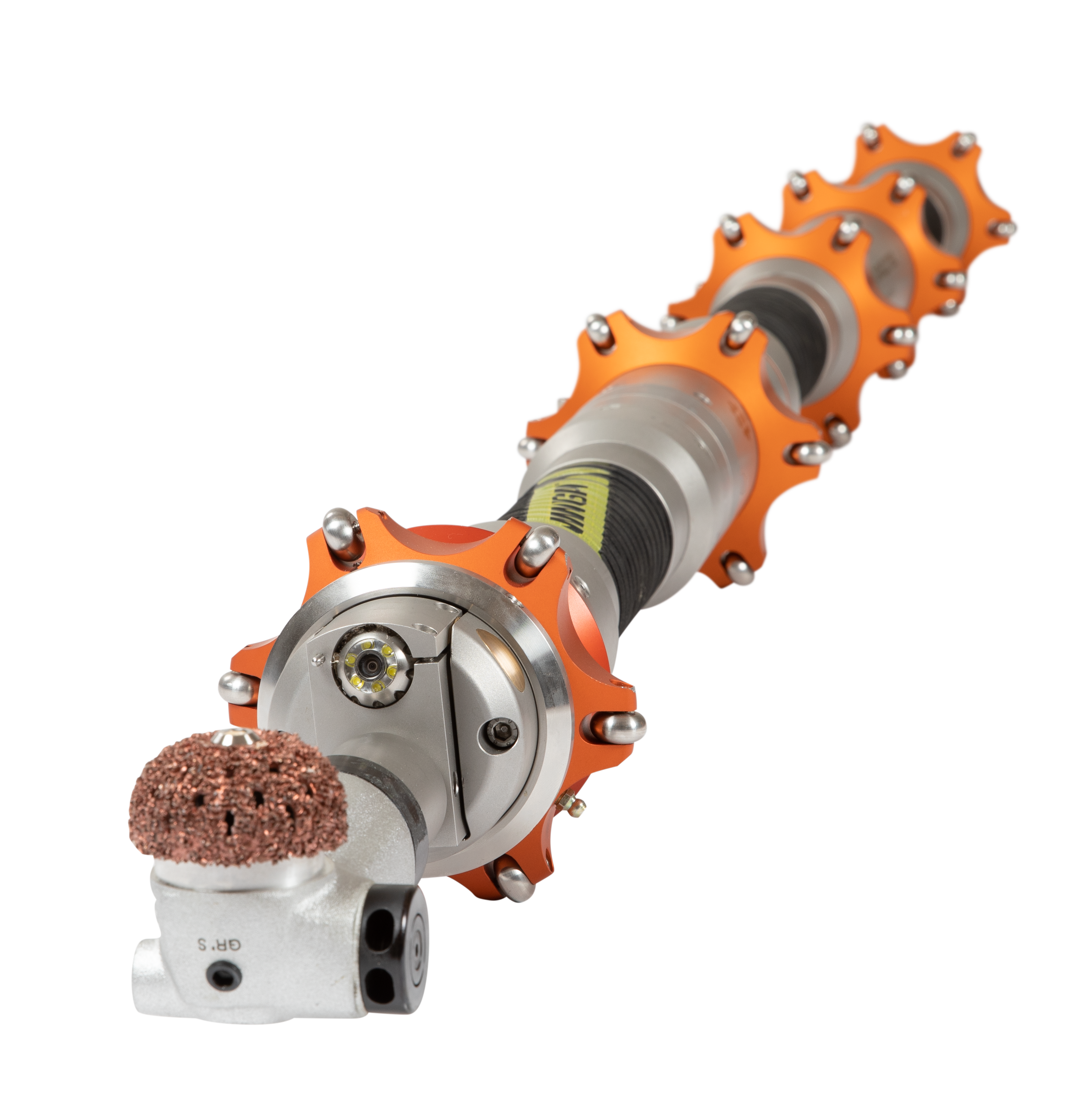

Toolbox, centring tool with brushes, and transport box are standard accessories
We offer a versatile range of accessories and spare parts for your Dancutter solutions
