CIPP Inversion Equipment

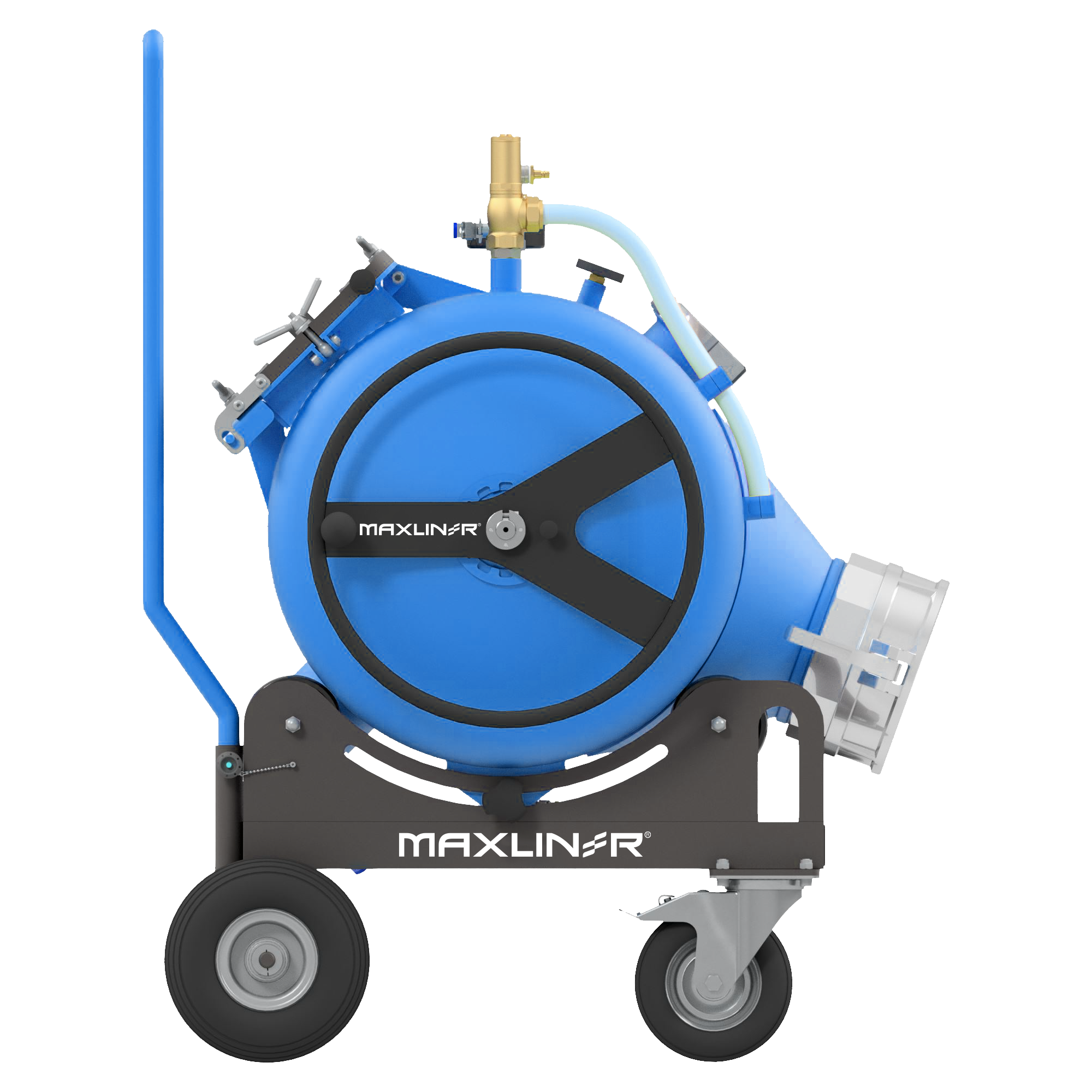

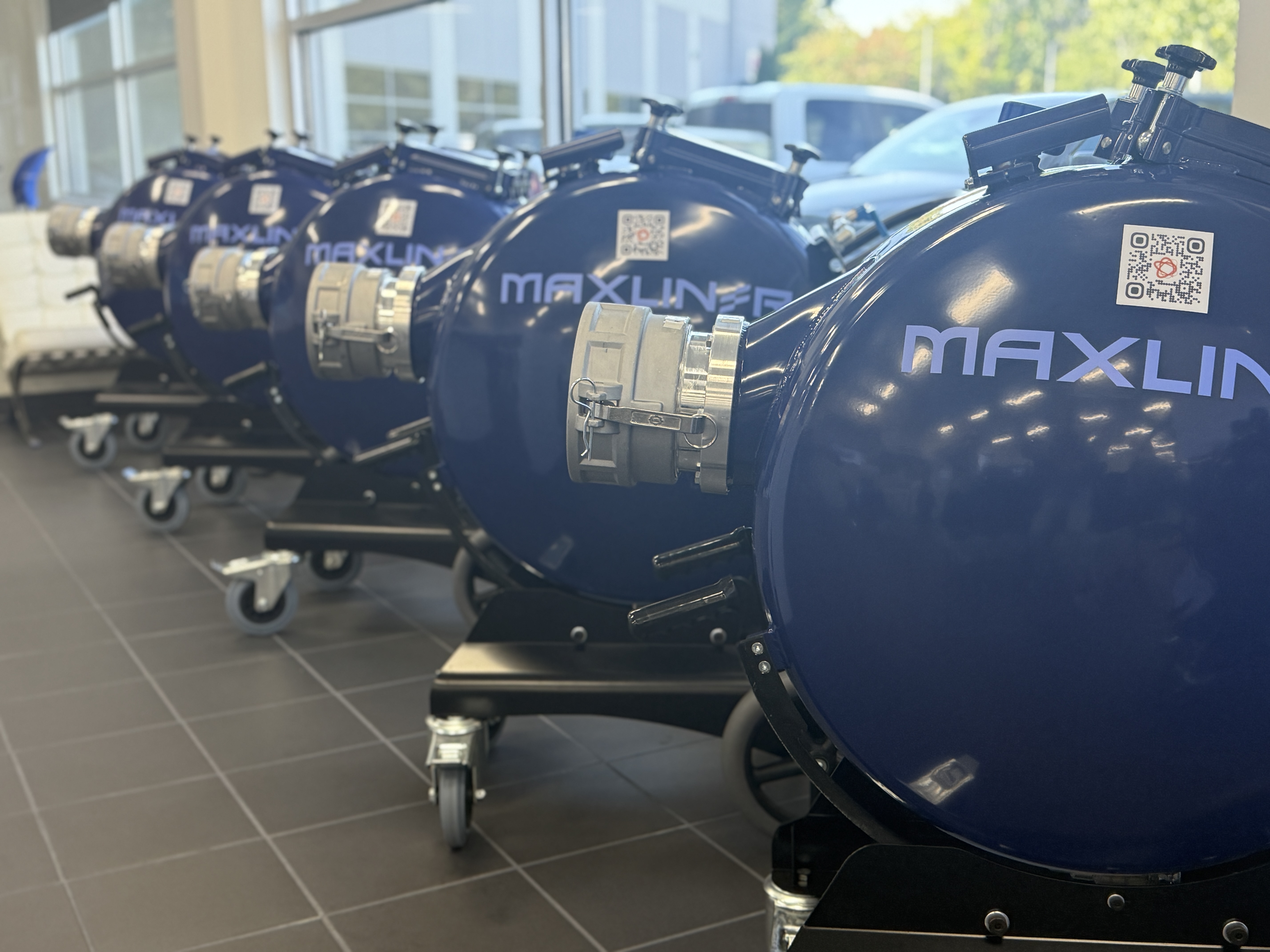

Inversion Drum for Liners Up to 6” | DN150
Max Length of 60 ft | 18m

The family of Max Inversion Drums allow you to easily, safely and quickly insert flexible liners into the sewer that needs to be rehabilitated. The resin-impregnated liner is wound onto the drum axle with a control rope and inverted into the open-ended or closed-ended sewer by compressed air. The inversion pressure and the inversion speed are constantly controlled via the control elements on the inversion drum.

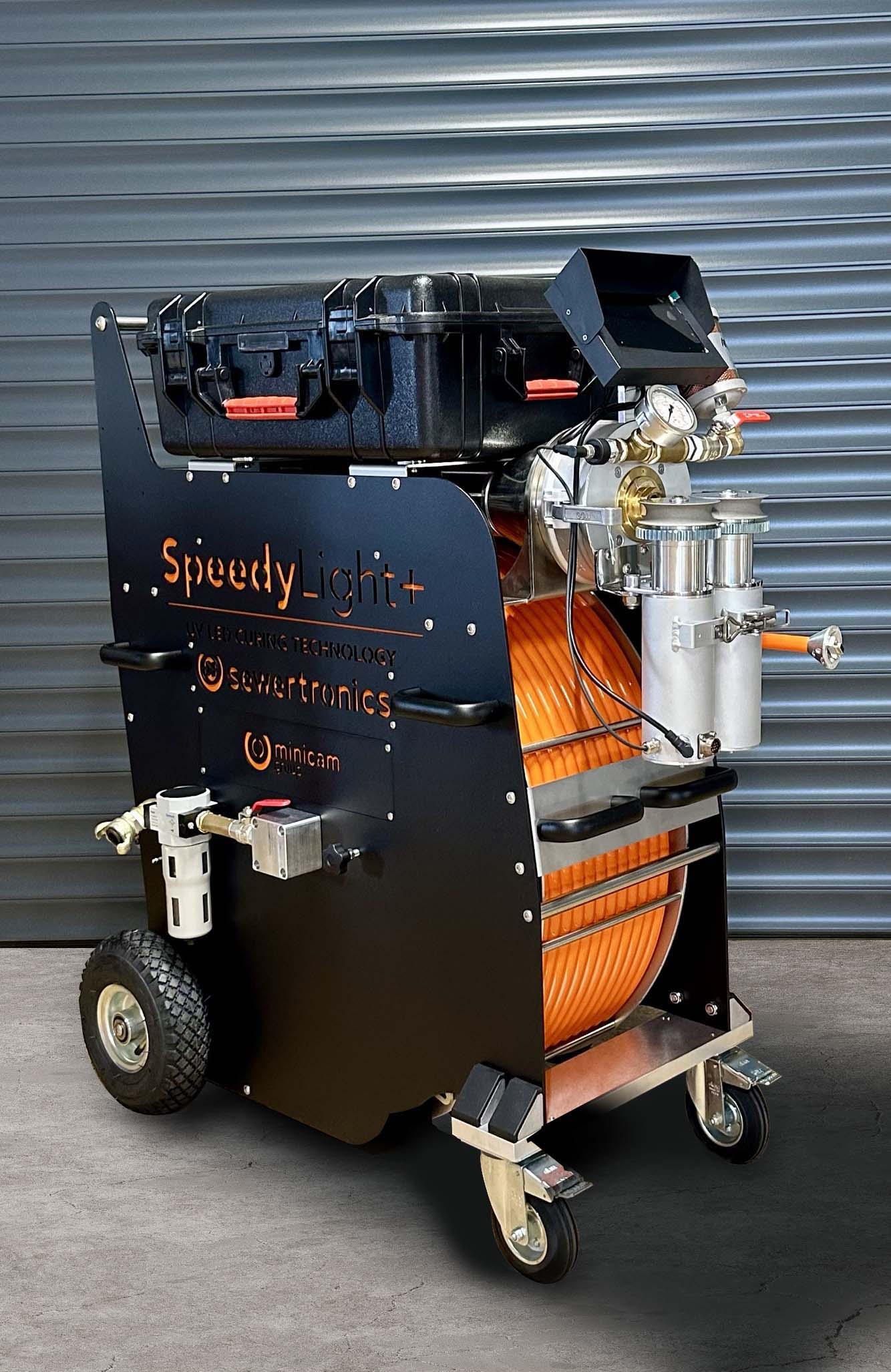

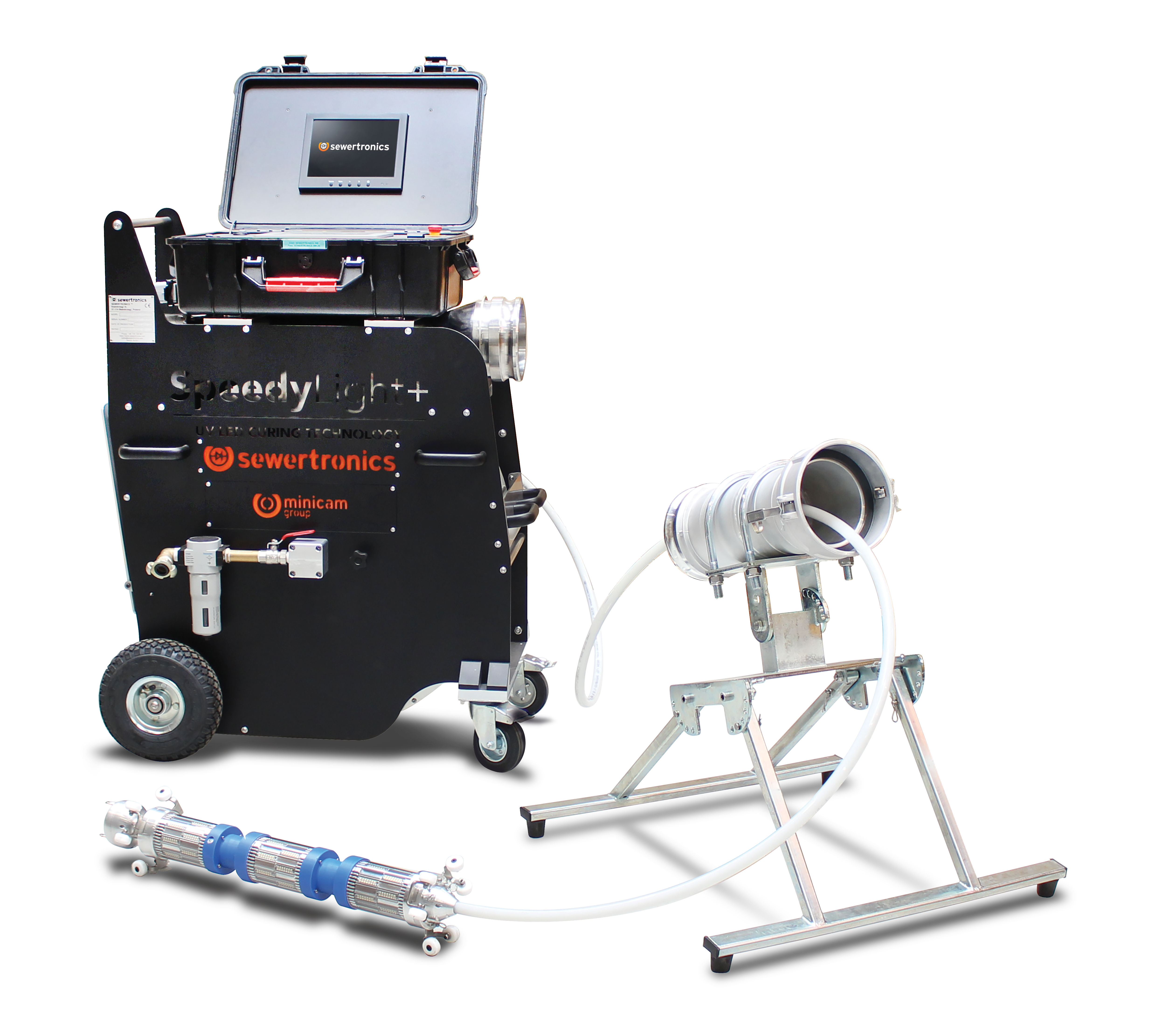

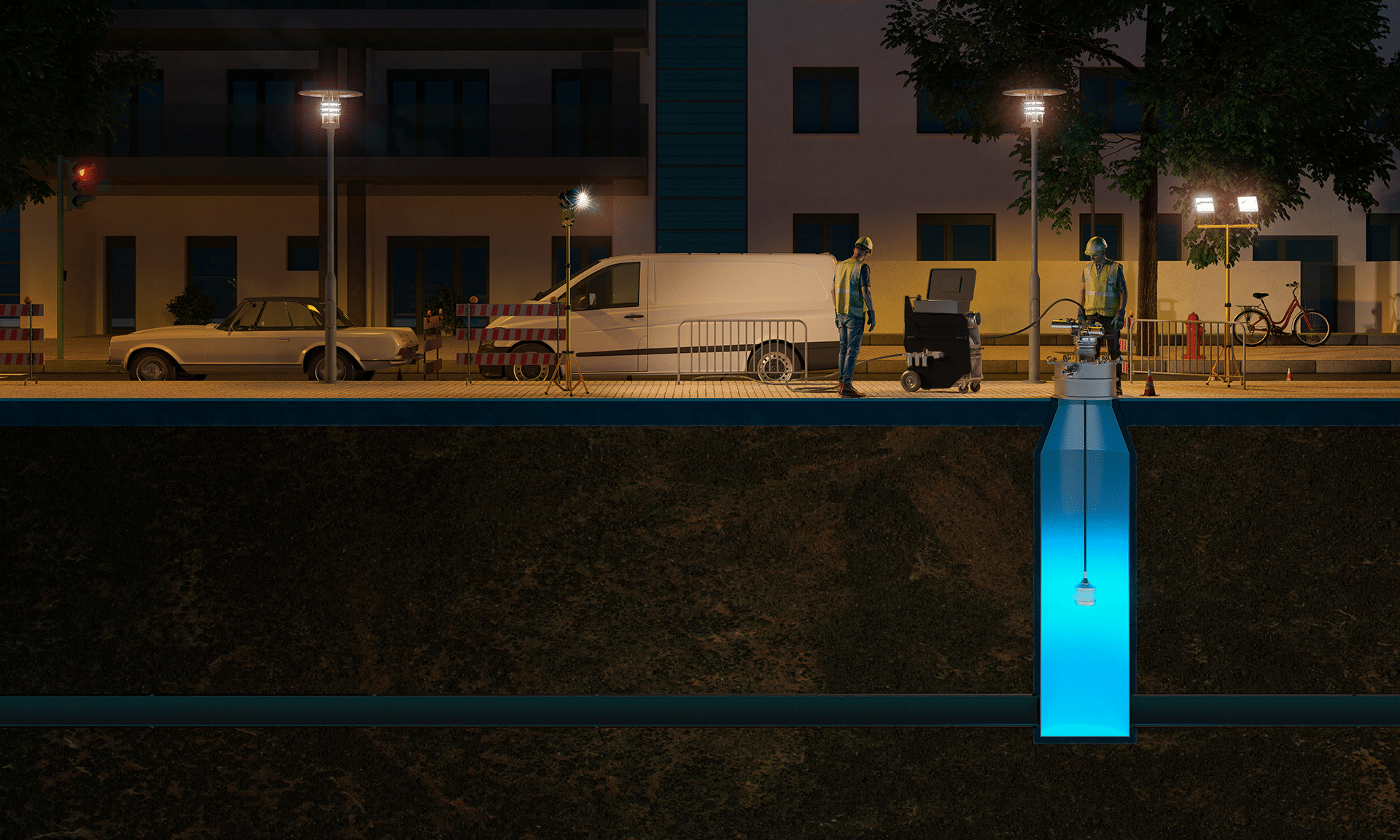

After the impregnated liner has been inverted, the curing process of the liner can be accelerated with hot water, steam or UV/ LED light. This results in the creation of a new pipe in the old pipe.

Inversion Drum for Liners Up to 6” | DN150
Max Length of 144 ft | 44m

The family of Max Inversion Drums allow you to easily, safely and quickly insert flexible liners into the sewer that needs to be rehabilitated. The resin-impregnated liner is wound onto the drum axle with a control rope and inverted into the open-ended or closed-ended sewer by compressed air. The inversion pressure and the inversion speed are constantly controlled via the control elements on the inversion drum.

After the impregnated liner has been inverted, the curing process of the liner can be accelerated with hot water, steam or UV/ LED light. This results in the creation of a new pipe in the old pipe.

Inversion Drum for Liners Up to 6” | DN150
Max Length of 328 ft | 100m

The family of Max Inversion Drums allow you to easily, safely and quickly insert flexible liners into the sewer that needs to be rehabilitated. The resin-impregnated liner is wound onto the drum axle with a control rope and inverted into the open-ended or closed-ended sewer by compressed air. The inversion pressure and the inversion speed are constantly controlled via the control elements on the inversion drum.

After the impregnated liner has been inverted, the curing process of the liner can be accelerated with hot water, steam or UV/ LED light. This results in the creation of a new pipe in the old pipe.

For Pipes 2″ – 8″ | DN50 – DN200

The Sluice is a developed system based on our patented two-chamber system for “endless inversion”. This protects the liner from unwanted stretching, bruises, wrinkles, and folds. This sluice works with all known rehabilitation methods such as cold, warm, steam, and UV curing.

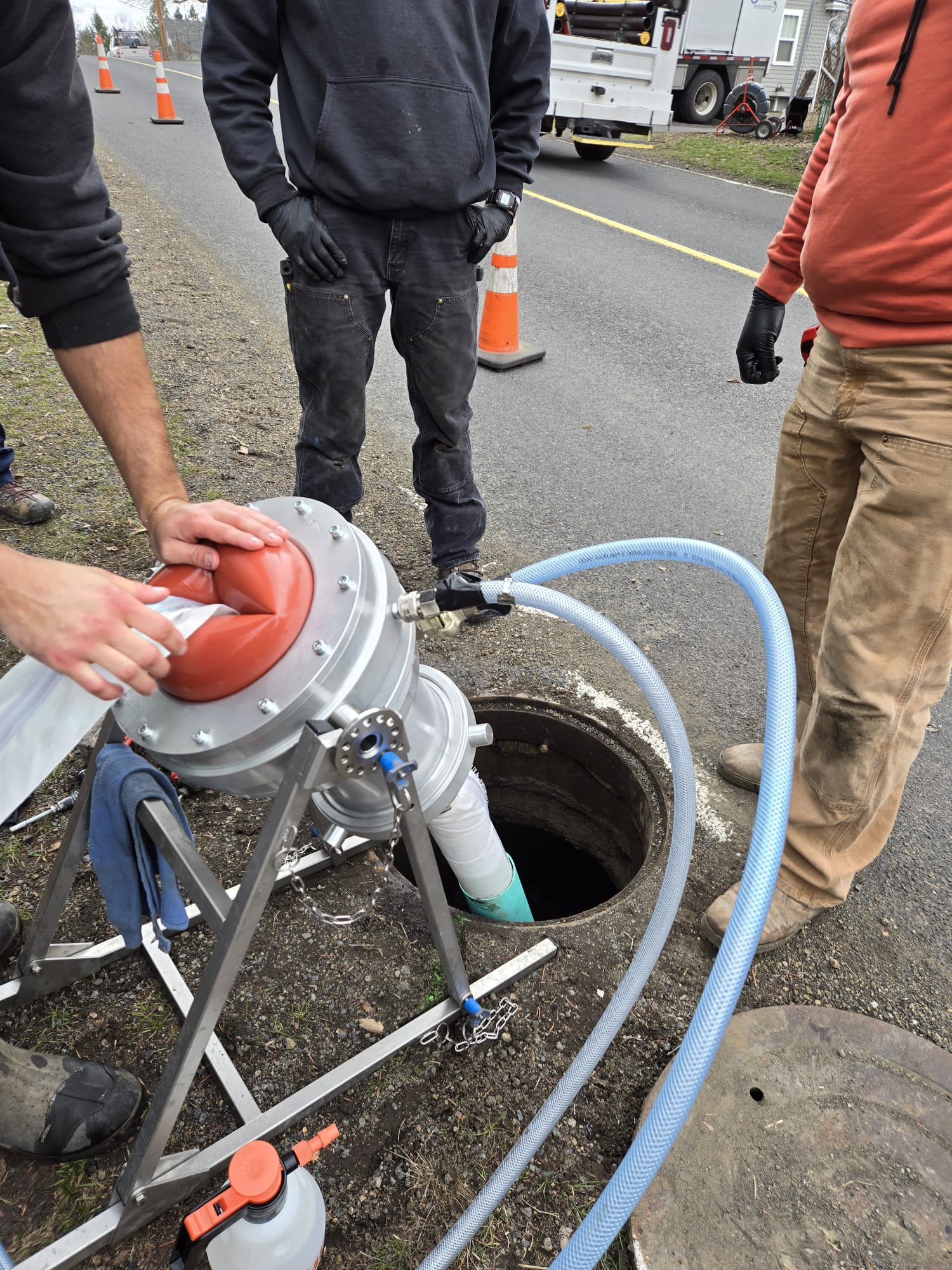

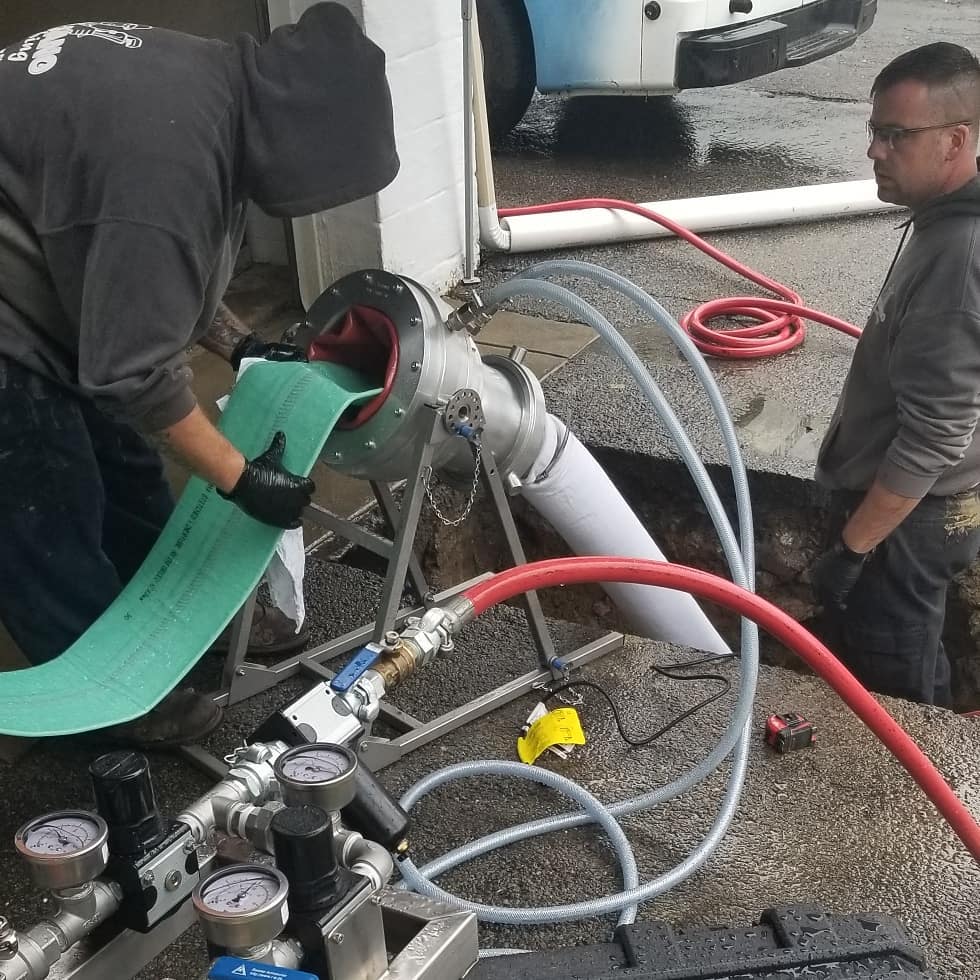

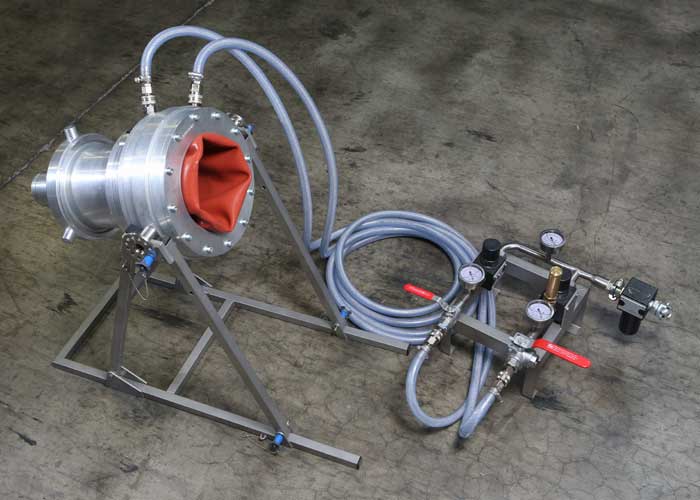

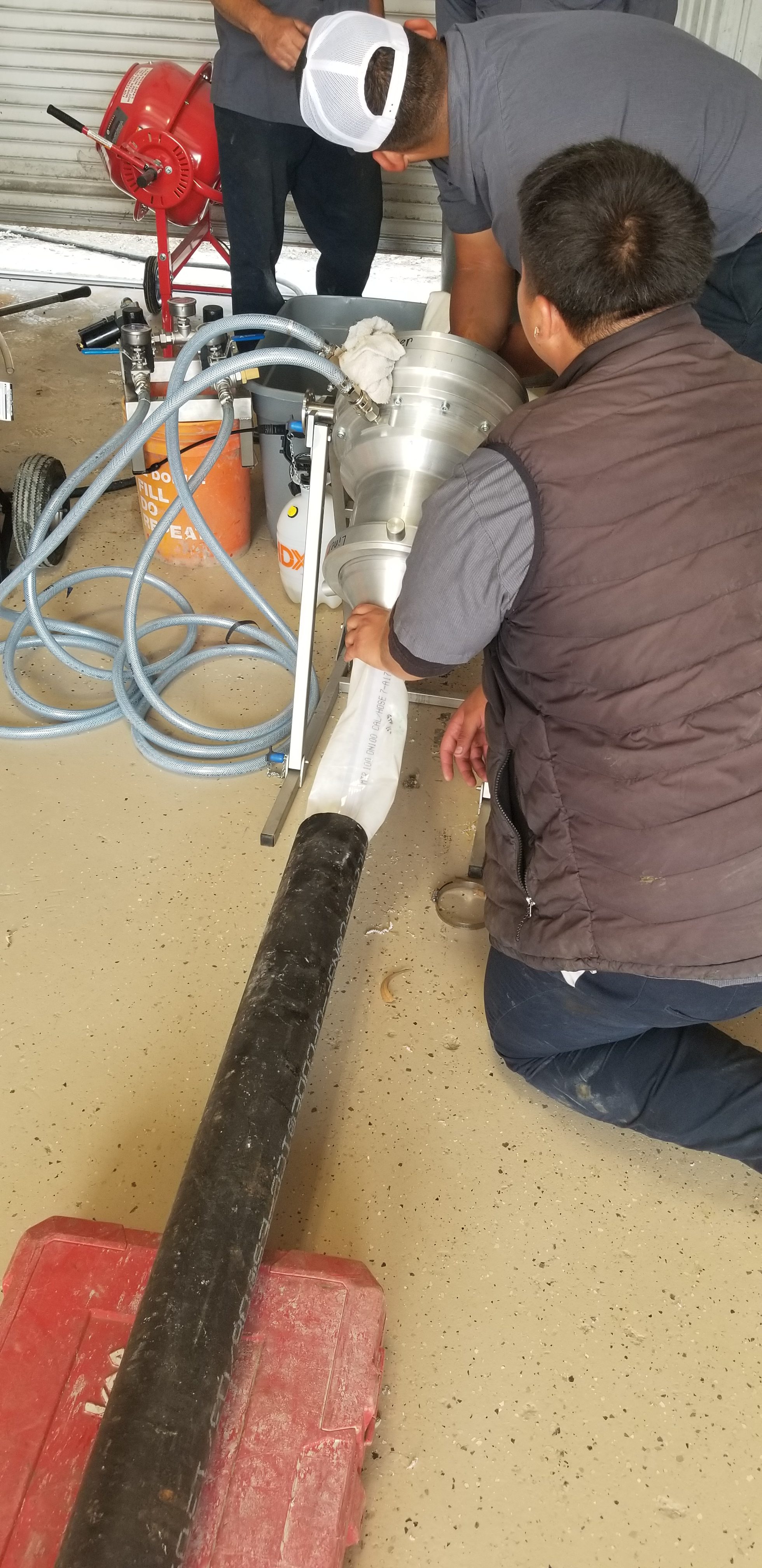

The aluminum Max LinerGun is a compact inversion unit for lining 2″-12″ | 50-300mm diameter pipes. Ideal for residential & industrial drains in horizontal or vertical applications. Methods include open-end for blindshots to the main and closed-end for pit to pit. The LinerGun rests on an adjustable stand and comes with 4″, 6″ and 8″ | 100mm, 150mm and 200mm Adapter Rings.
