All-In-One Point Repair System

Pipe Materials. Resin. Packers. Accessories.

Streamline your pipe repair process with United Point Repair (UPR), an all-in-one, pre-packaged system designed for fast, effective, and minimally invasive repairs. Compatible with all pipe materials, UPR uses pre-cut, pre-sized, and pre-measured components for ease of use and requires only standard sewer cleaning and inspection equipment.

We also offer a full range of packers and accessories to support UPR applications in pipe diameters from 3 to 48 inches. Our packers are durable, inflatable carriers designed to position and hold repair materials securely against the inside of the pipe while the repair cures.

Features:

Turn-key: Everything you need in a point repair kit to succeed.
Versatile: Works with concrete, clay, iron, PVC, and more.
Customizable: Choose from Summer (slow), Winter (medium), and Turbo (fast) curing resins.
Comprehensive: The compact system is designed for confined spaces and supports rapid, odorless repairs with a 50-year design life.

Ideal for addressing cracks, infiltration, corrosion, and other pipe damage, United Point Repair is proven to enhance productivity and reduce costs while complying with ASTM F1216 standards.

United Point Repair

An all-in-one no-dig solution for point repairs. Developed by industry leading experts and perfected in the field to provide long-term, leak-free repair – regardless of pipe age or material. Available in three ambient curing resins to meet your needs.

Works with all pipe materials and substrates, ideal for:

Longitudinal cracks
Radial cracks
Root and water infiltration
Corrosion
Offset joints
Broken / missing pipe

Works with all pipe materials and substrates, ideal for:

Longitudinal cracks, radial cracks, root and water infiltration, offset joints, broken / missing pipe
Engineered for the season or project condition. Available in three ambient, Quad-Cure^® curing resins to meet your needs: Summer (slow), Winter (medium), and Turbo (fast)
For pipes from 3”–72” in diameter
Repair material sold in 24” and 48” lengths. Longer sizes available upon request.
Bulk material orders available upon request.

ML United PR FlyerDownload (2.33 MB)ML United PR TDSDownload (167.88 KB)

United Point Repair - UV System

Reliable, Cost-Effective, and Seamless Spot Repair for Mainline Pipes

Address I & I, exfiltration, roots, and off-joint connections without the hassle and expense of a complete reline. United Point Repair UV uses clean ultraviolet light cure technology for reliable mainline point repair.

It’s no-shrink design anchors itself within the pipe and averages just 0.13” thick after curing.

United Point Repair UV features highly chemical resistant, styrene-free UV resin with an extremely high glass transition temperature of 266°F | 130°C.

Cures in only 10 minutes
Diameter range: mainlines 6”-12” made of concrete, PVC or vitrified clay pipe
Available in 24” and 48” lengths
Transitions smoothly into the host pipe walls, with minimal reduction in flow capacity

ML United PR – UV System TDSDownload (260.56 KB)

Packers

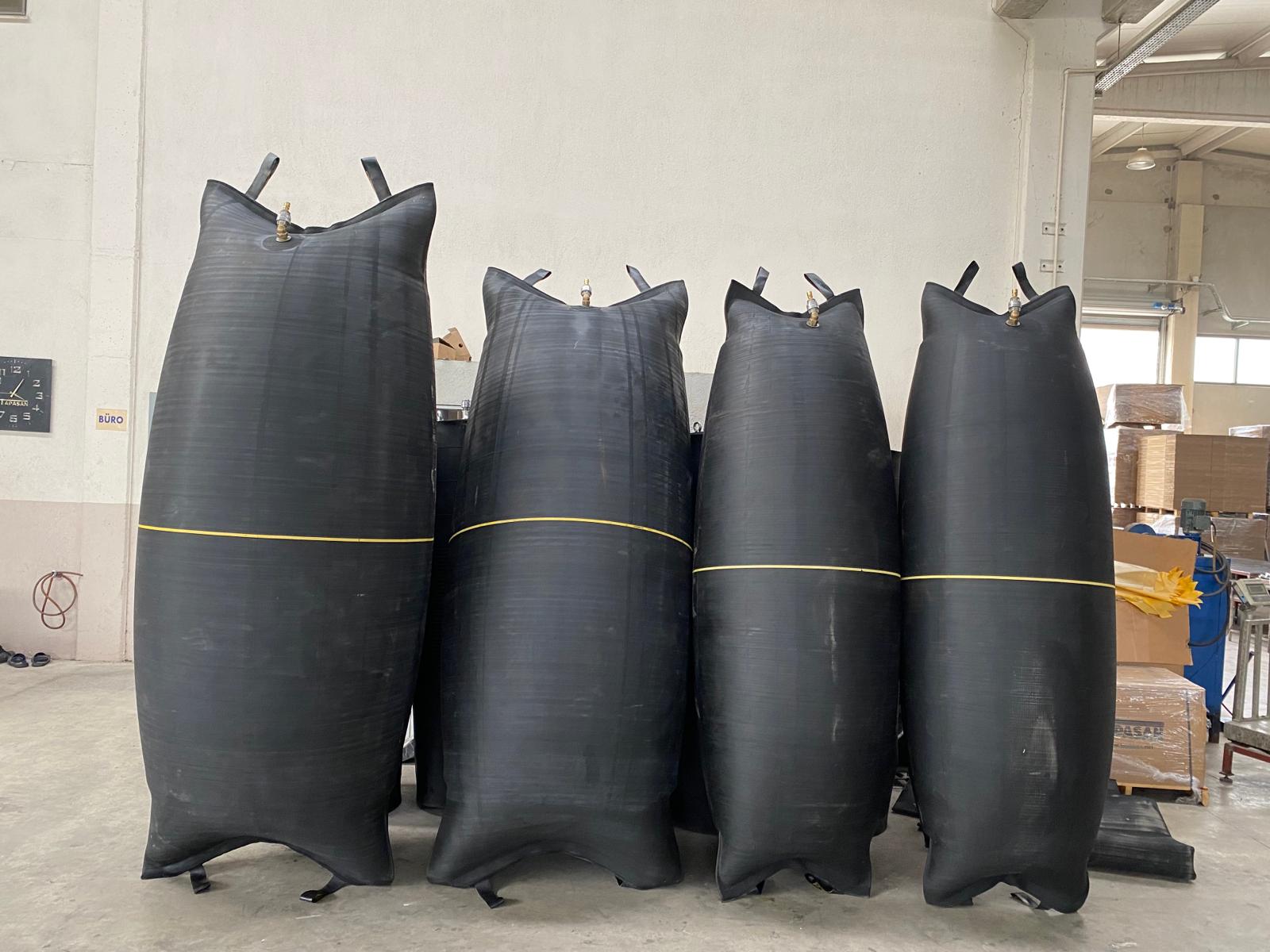

Packers are durable, inflatable carriers designed to position and hold repair materials securely against the inside of a pipe while the repair cures.

Standard/Straight Repair Packers are used for point repairs in straight pipe sections. Available in multiple diameters and lengths, select models include a bypass to maintain flow during installation.

Flex/Elbow Packers are flexible carriers designed to navigate bends, elbows, and other curved pipe sections where a standard straight packer may not fit properly.

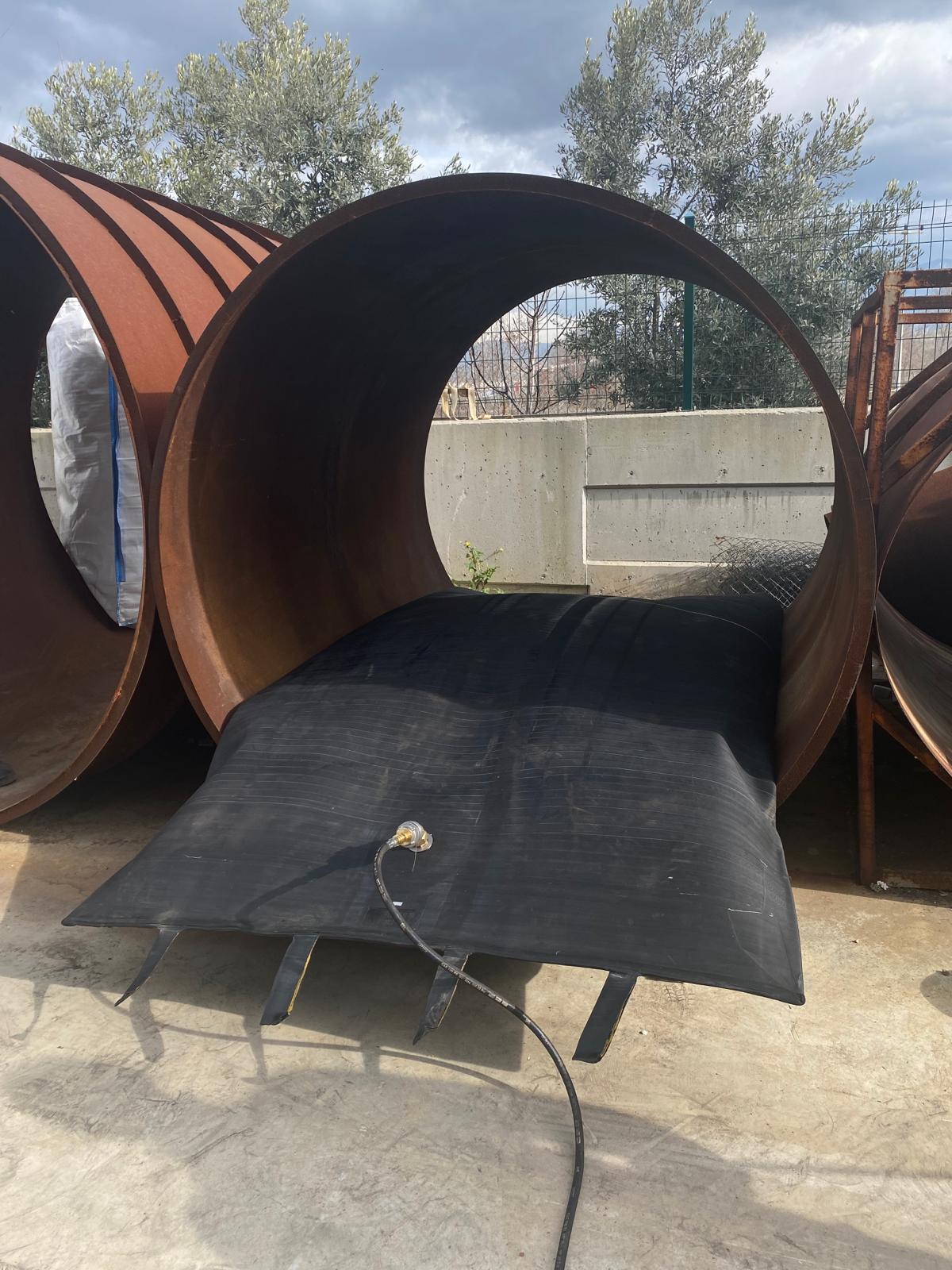

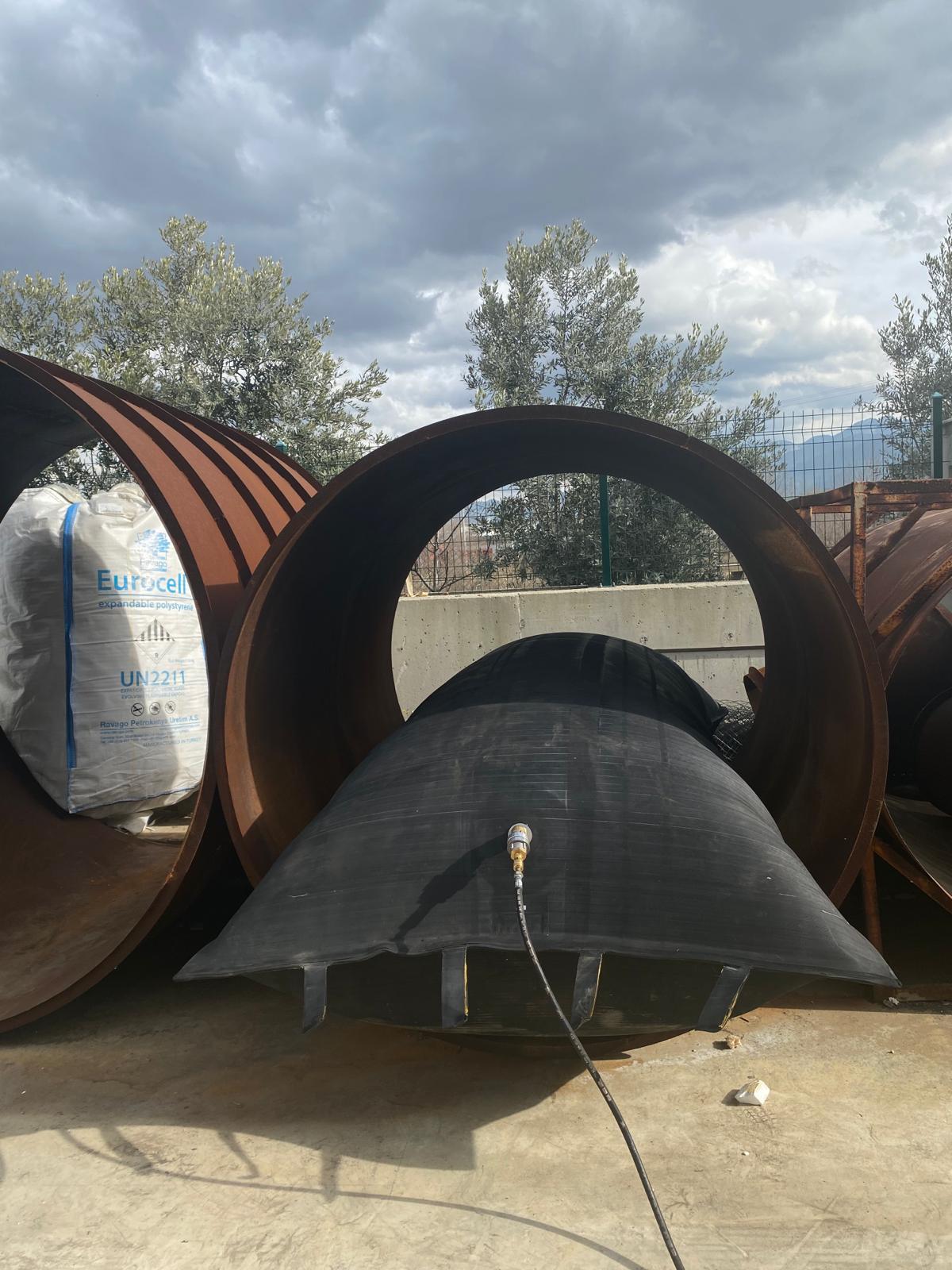

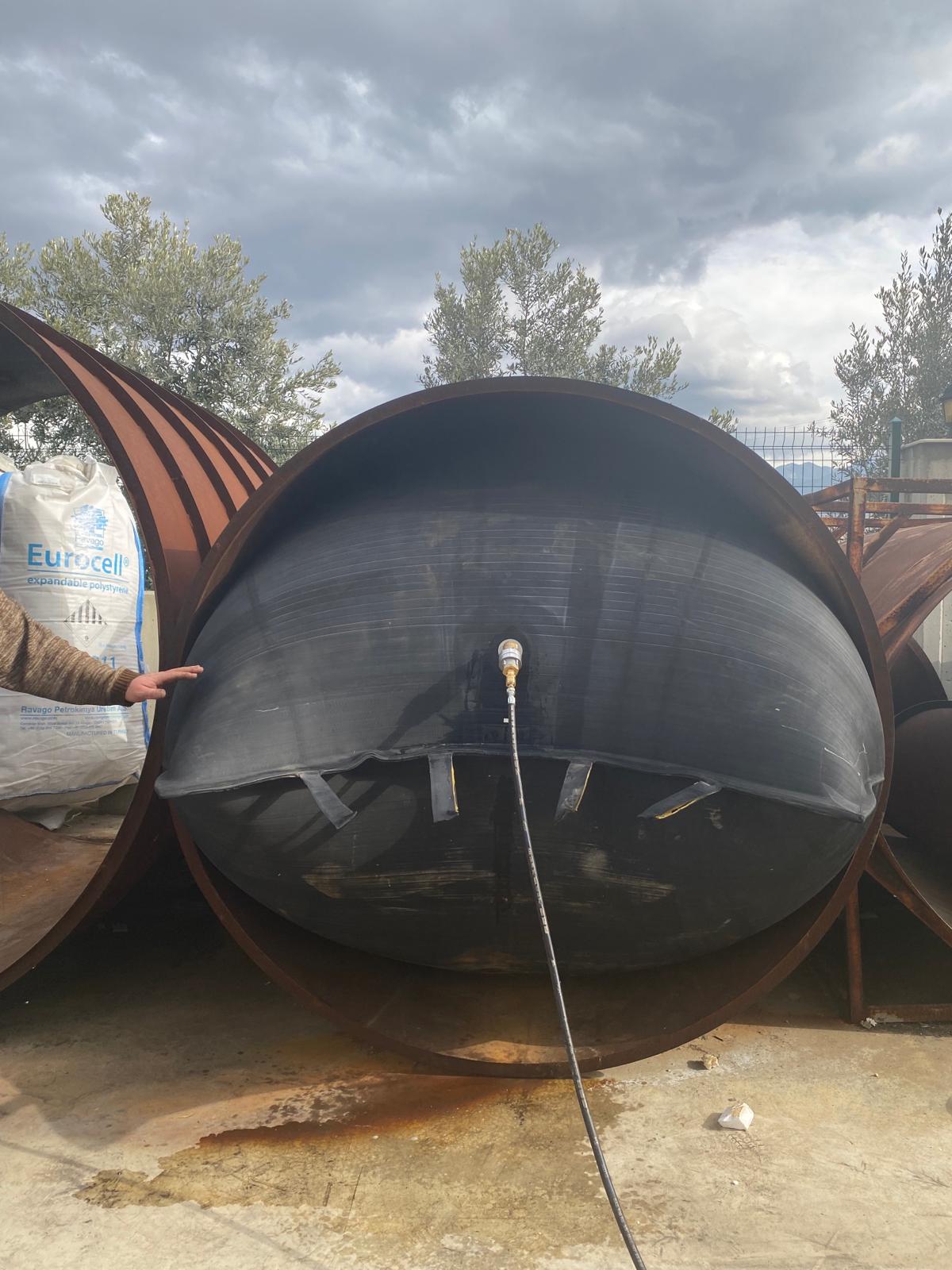

Pillow Packers are heavy-duty inflatable packers designed for larger-diameter pipes. Their pillow-style construction expands to support and press repair materials firmly against the pipe wall.
