Robotic Cutting

Small Diameter Cutting Solutions

For cutting out obstructions or reinstating laterals, MaxLiner offers a proven and powerful line-up of cutters for 3” – 10” pipe diameters.

These house-to-main connection cutters remove the toughest deposits and are a reliable tool when opening and reopening lateral connections after liner rehabilitation – quickly and effectively. Designed for optimum flexibility, MaxLiner’s cutters can reach any location. You can choose from several models and levels, based on your cutting demands.

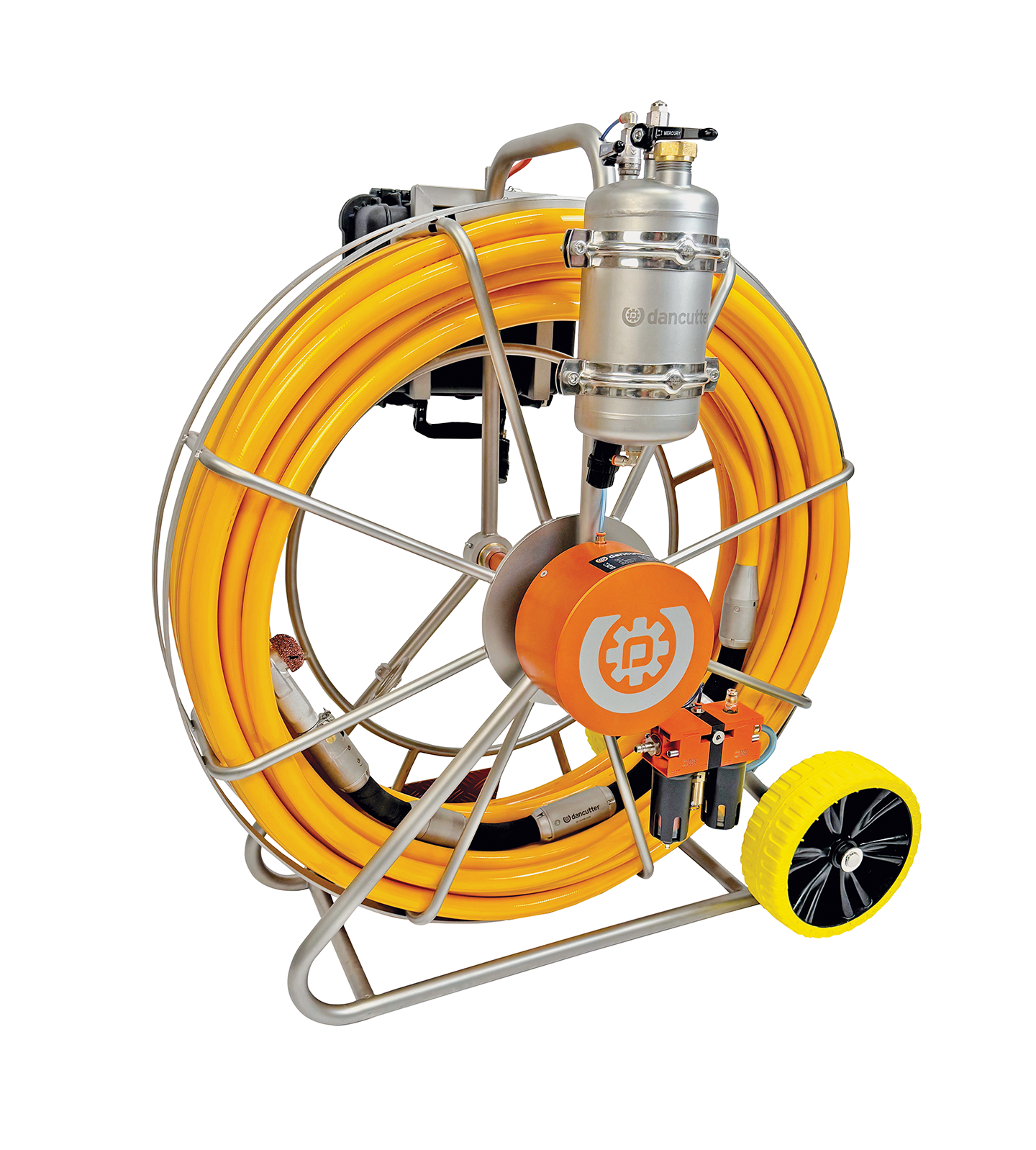

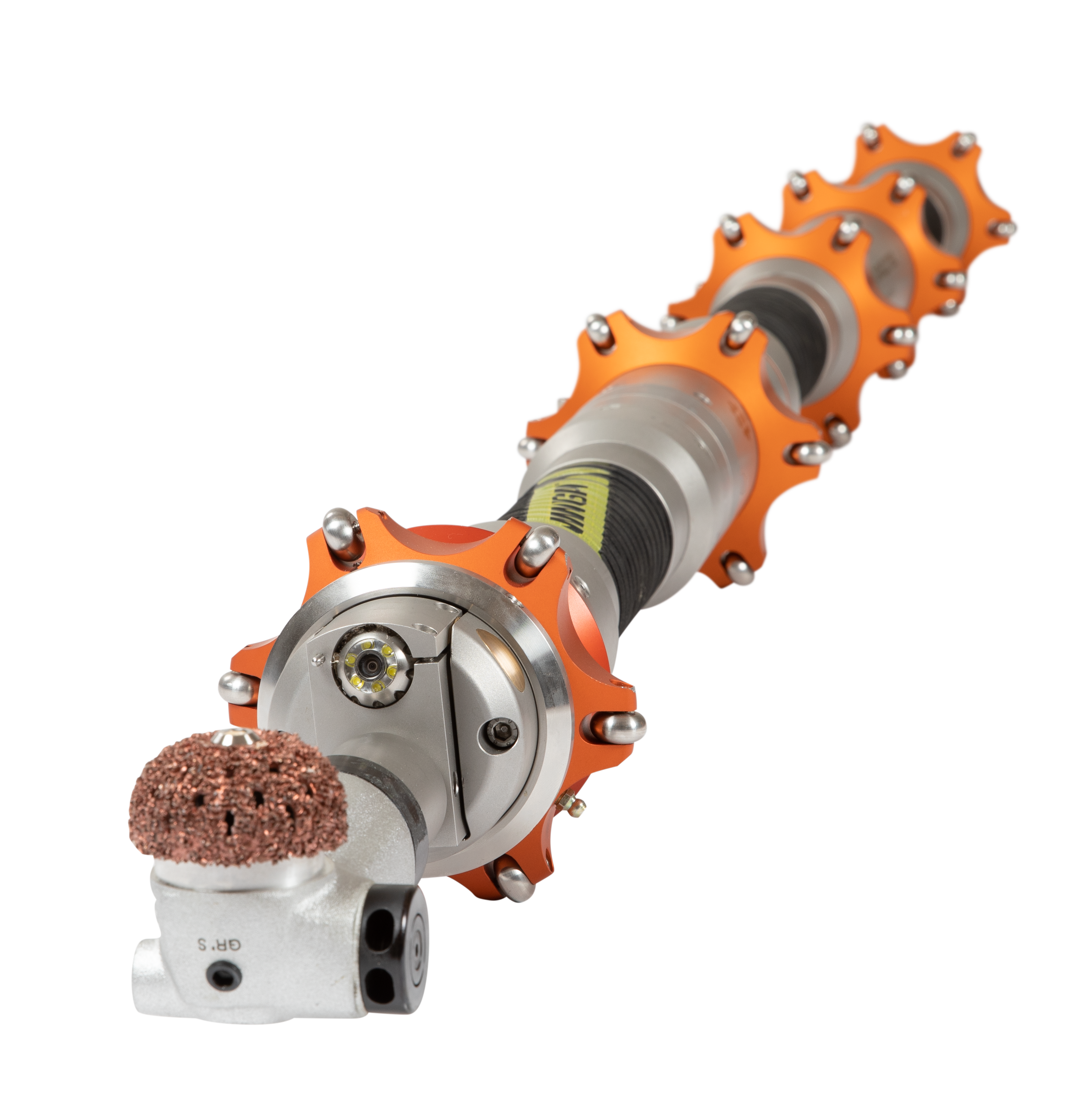

DC Super Flex

DanCutter’s Extremely Flexible Cutter – Size Range 3”-6” | 76-152mm

Powerful & Flexible

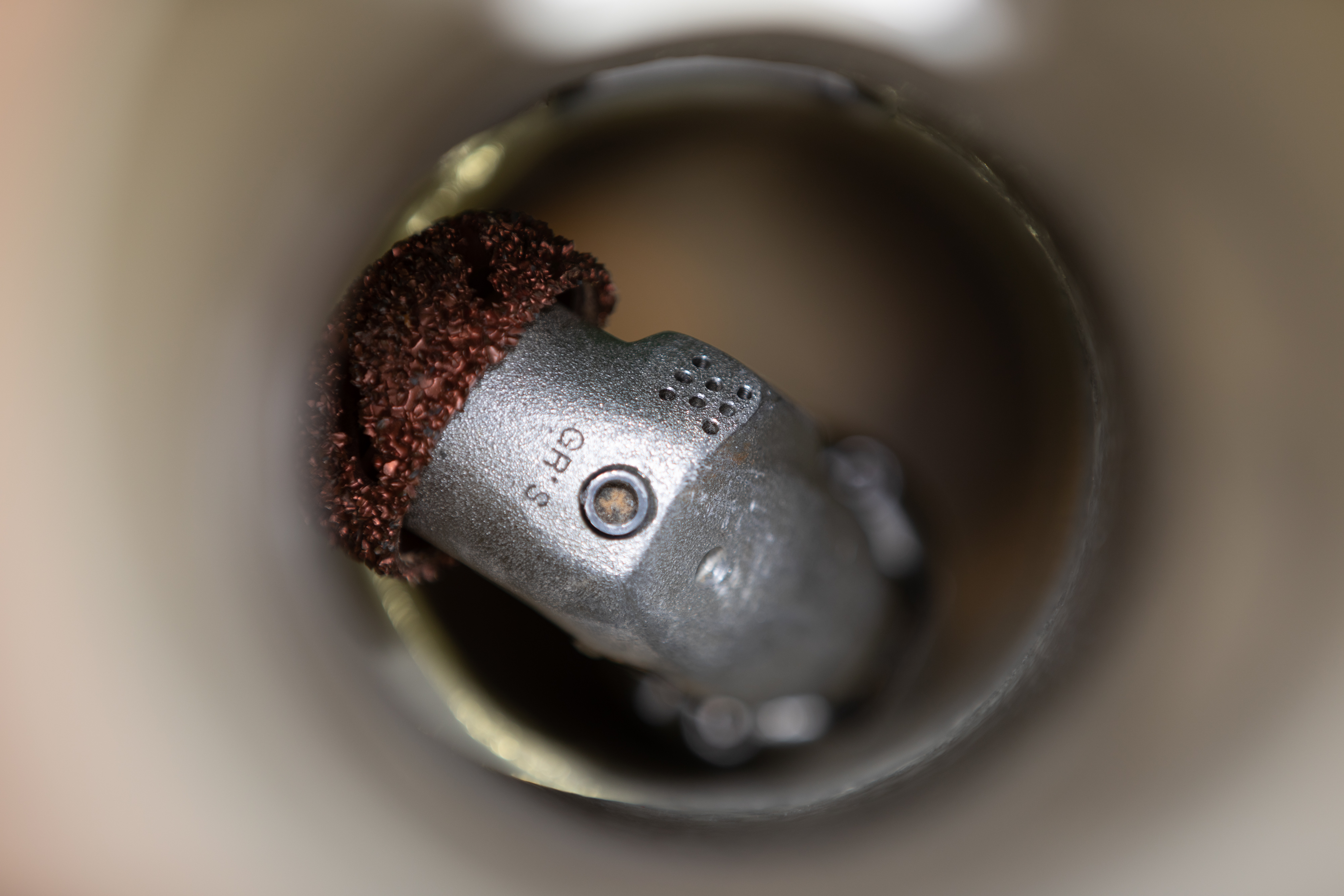

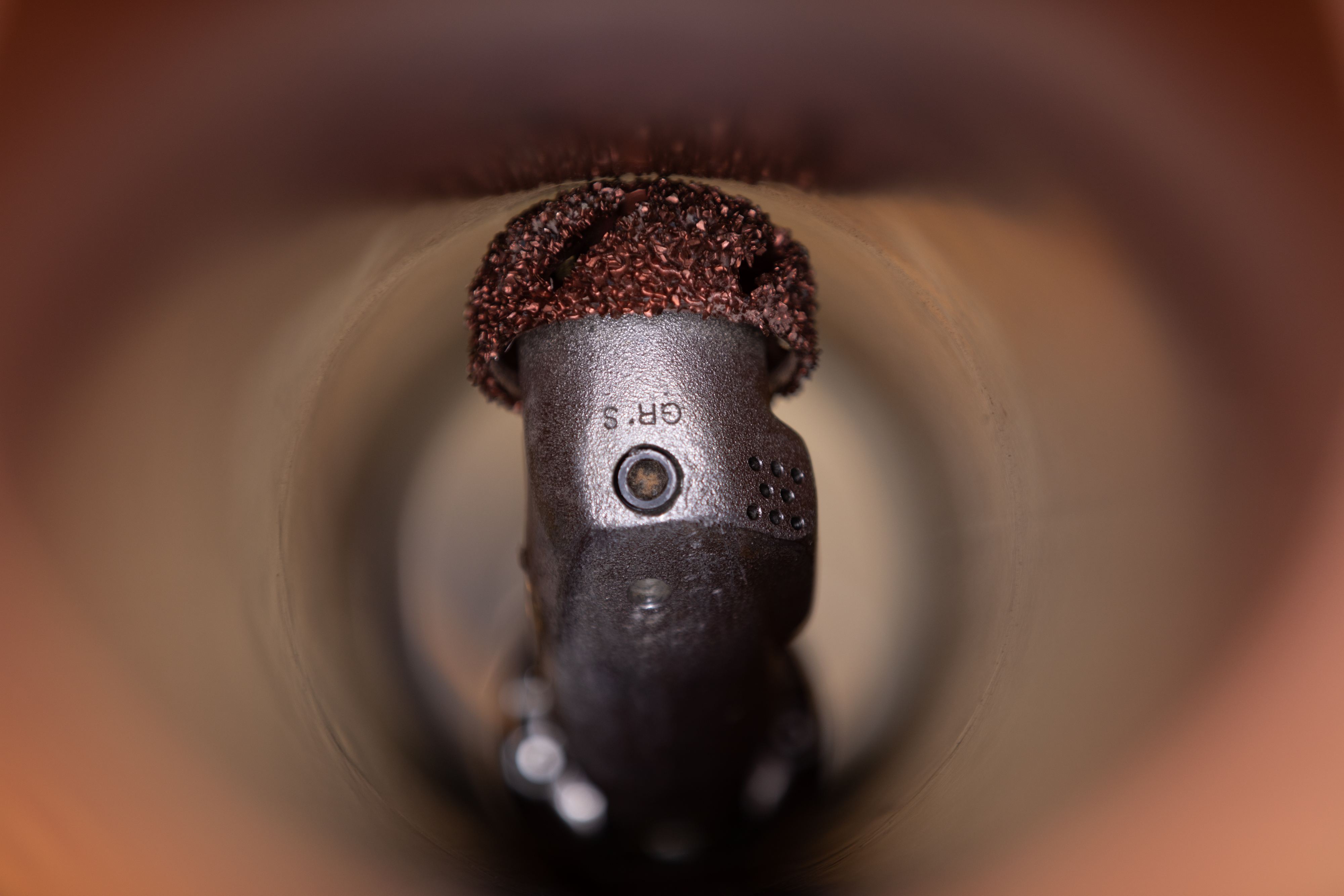

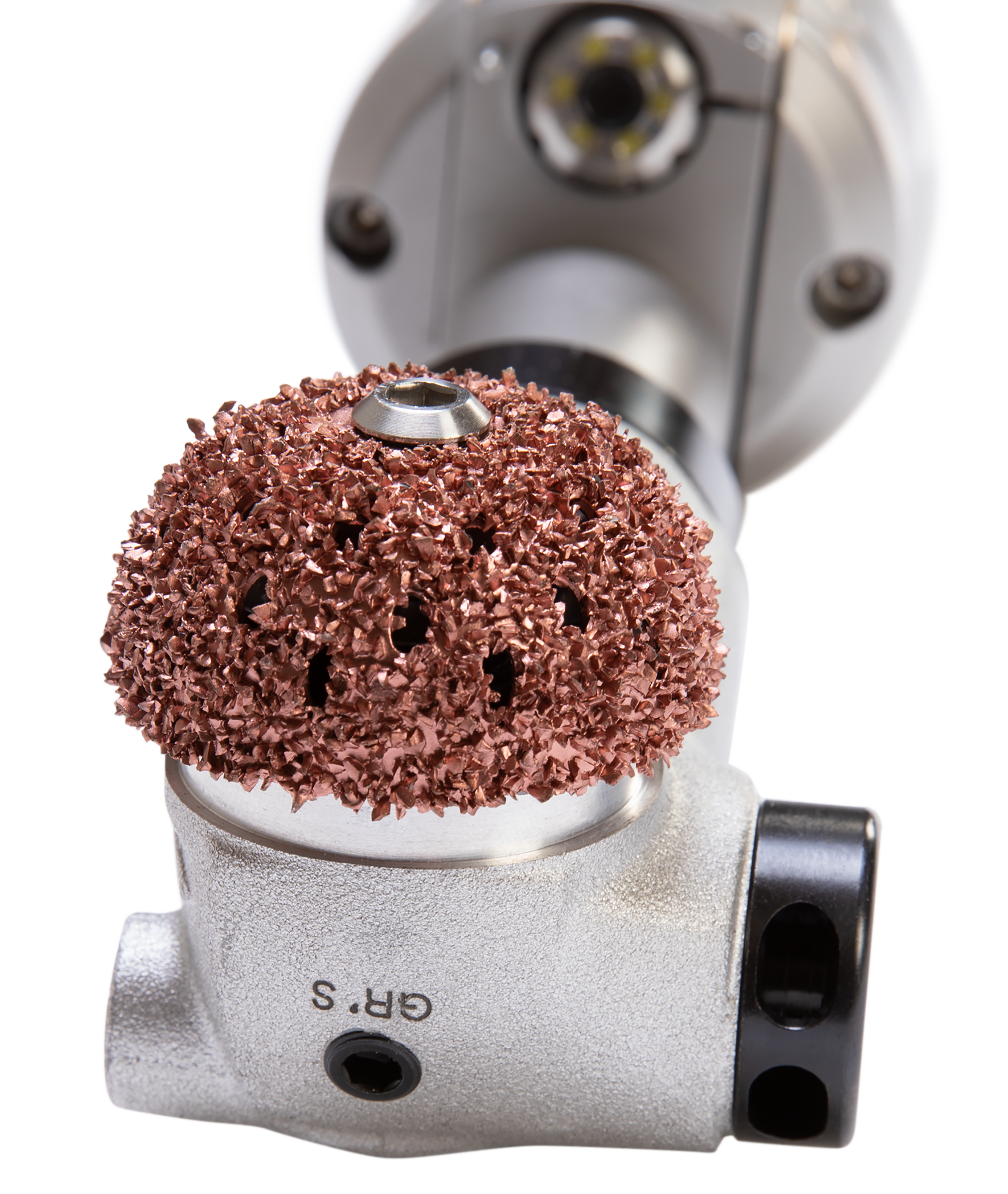

Extremely flexible in 45° and 90° bends. Effectively cuts, grinds, and mills in diverse materials.

Advanced Control Unit
Equipped with two joysticks, the control unit provides precise control over the motor rotation and cutter arm movements, allowing you to raise, lower, expand, and contract the cutter with ease.

360° Continuous Rotation
Enjoy unrestricted operation with a continuous 360° continuous rotation feature.

High Maneuverability
Automatic feeder and built-in slip ring for seamless back-and-forth movement.

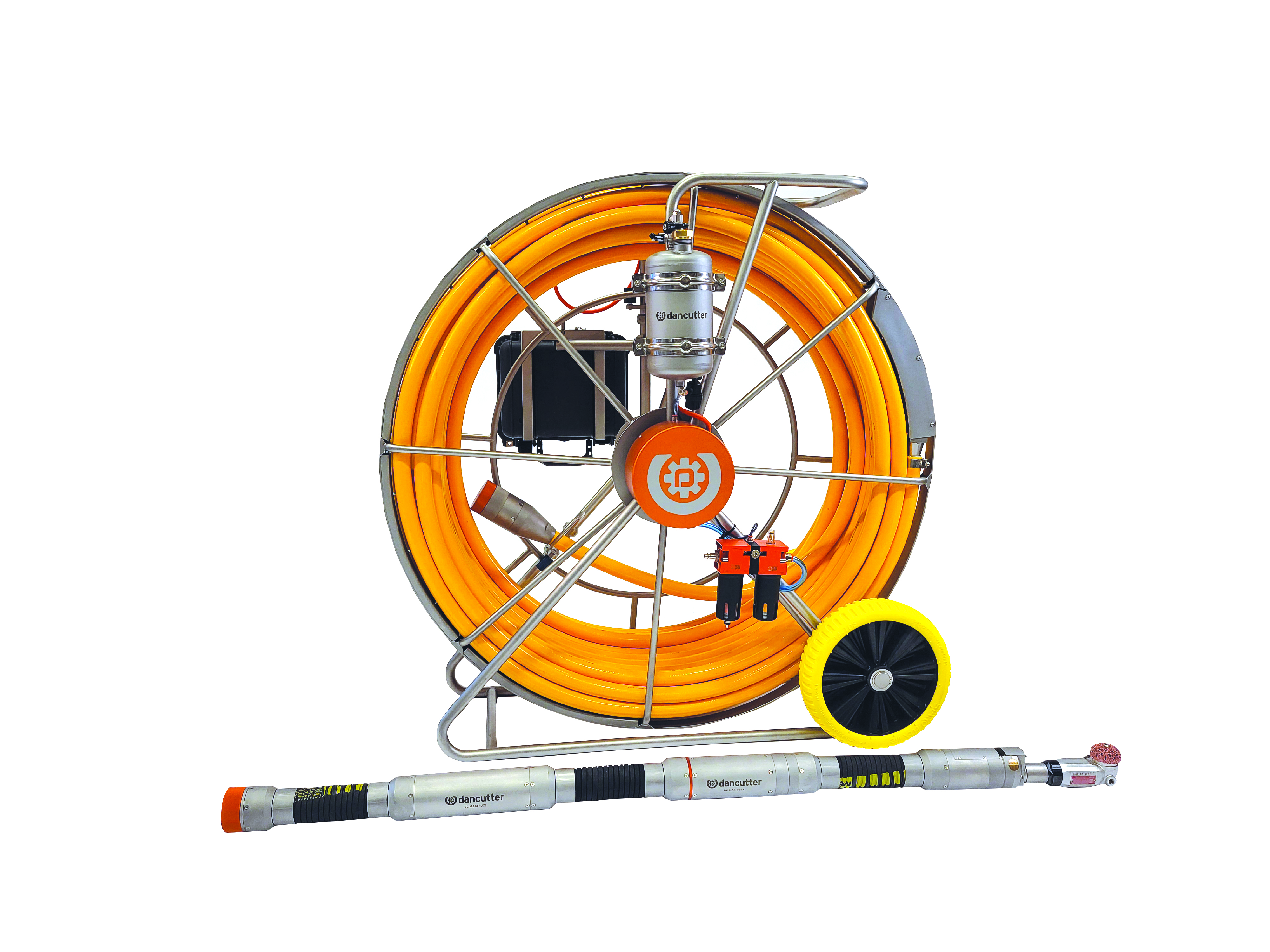

Supply Hose
164 ft. | 50m hose for tailored operational flexibility.

Enhanced Functionality

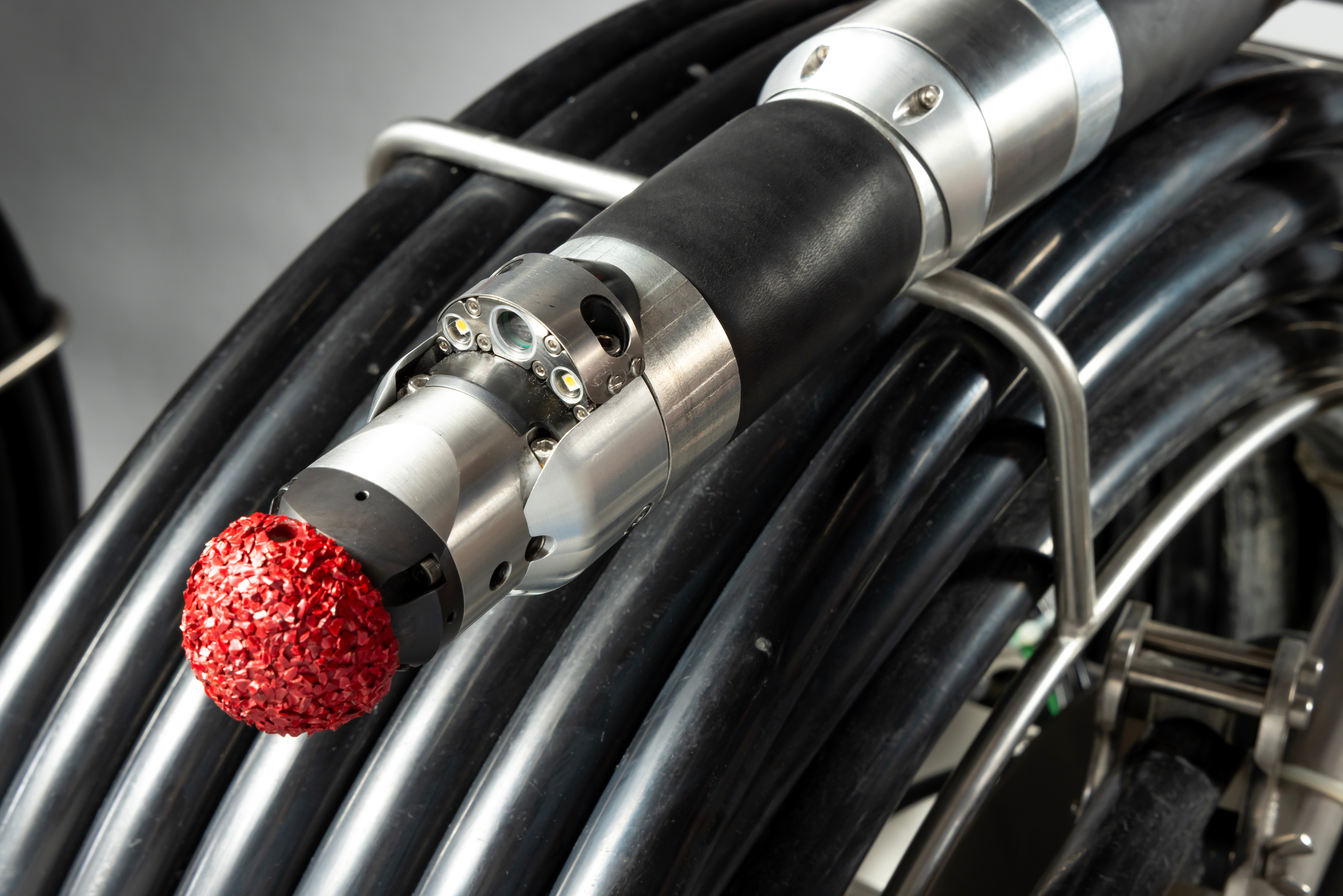

The cutter is equipped with a spray nozzle for camera cleaning with air or fluid.

  • Pipe Diameter: 3”-6” | 75-150mm
  • Supply Hose Options: 82 ft. or 164 ft. | 25m or 50m
  • Bends: 45°-90°
  • Expansion/Extraction: 2.4” | 60mm
  • Rotation: 360° continuously
  • Grinds, Mills and Cuts: PVC, liner, concrete, iron, cast iron, stainless steel
  • Air Supply: 550 I/min, 22 cfm
  • Grinder: 15,000 rpm
  • Air Pressure: Max 145 psi | 10 bar
  • Power Supply: 110/240 VAC – LN
  • Weight:
    • 82 ft. | 25m — 128 lbs. | 58 kg
    • 164 ft. | 50m — 156.5 lbs. | 71 kg
  • Stainless Steel Frame (L x W x H):
    • 39.37” x 19.69” x 40.55”
    • 1,000mm x 500mm x 1030mm
